Security Portal
Round base mantrap (Ø1050mm), security portal with interlocking doors

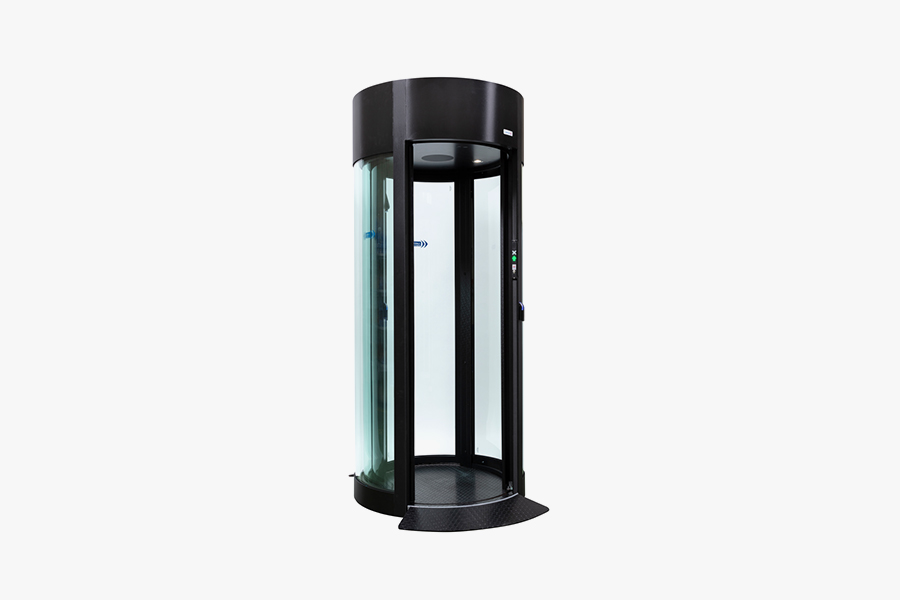

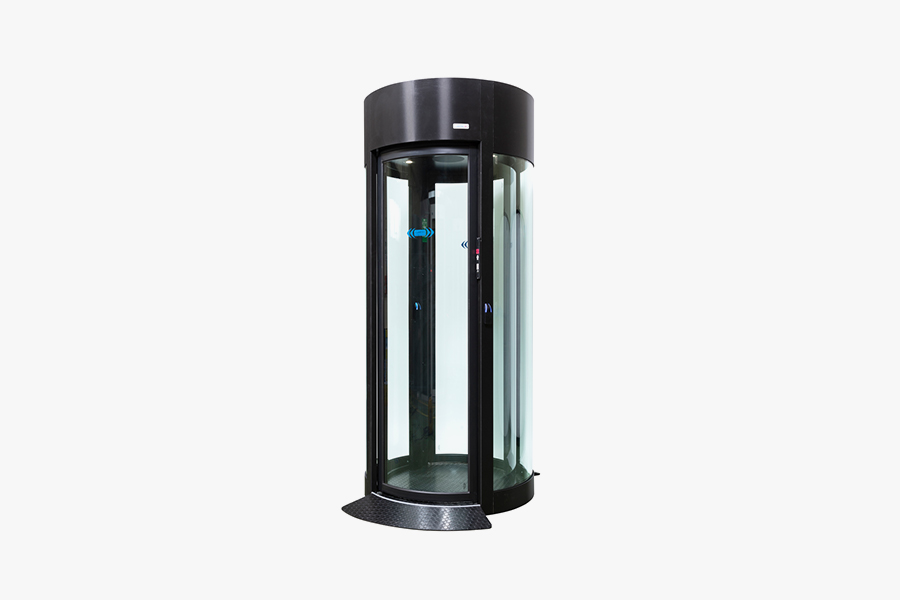

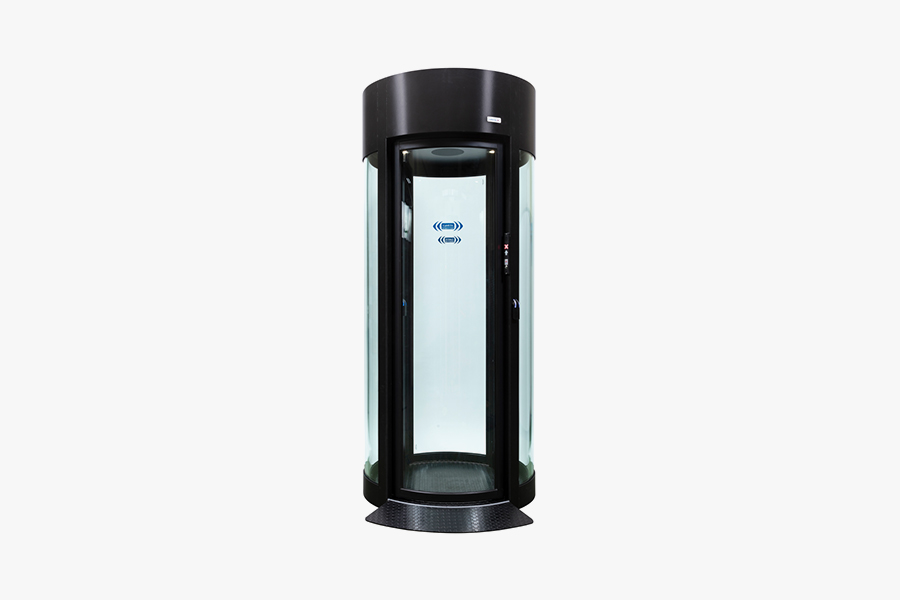

Co136 Security Portal with interlocking doors system
Round base anti-burglary Portal with single person passage checking system and abandoned object detection system (floor). Anti-robbery portal, small dimensions. Designed specifically to be placed in tight or in multiple access entrances (2, 3 or 4 parallel portals). Ideal access protection solution for: airports, banks, companies, embassies, prisons, datacenters, jewelleries and areas of particular value. The second door opens only if access controls are passed with successful.
Fully self-managed, it automatically detects the person waiting, in transit, and manages the voice commands to communicate with the customer during the passage steps. It can be enriched with metal detector and access control systems such as: badge readers, RFIDs, NFCs, fingerprint sensors and / or biometric facial data.
Available model:

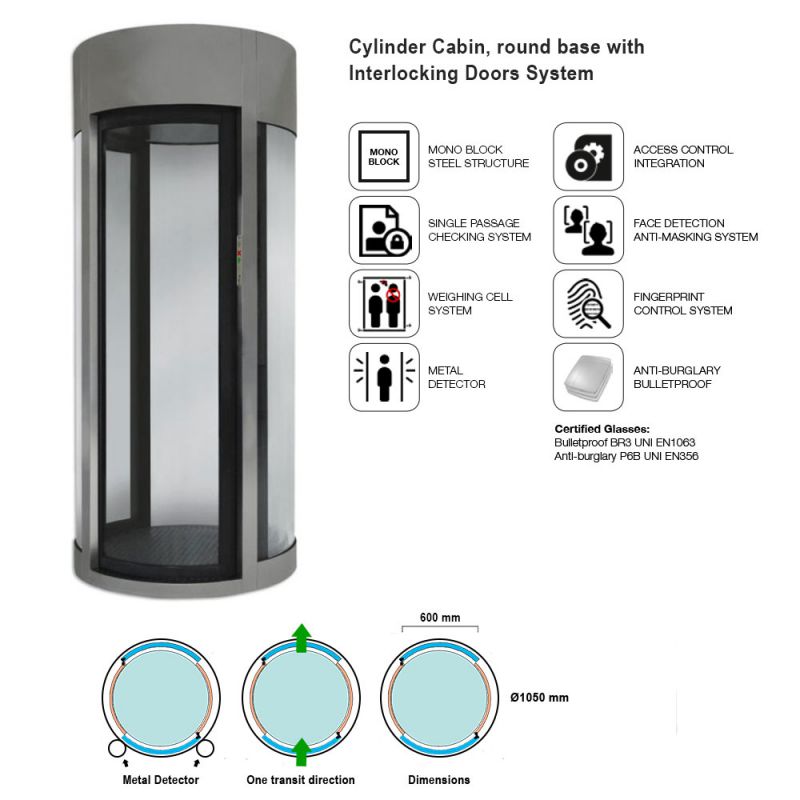

- Co136.60: Ø 1050 x H 2400 mm | Passage: W 600 x H 2000 mm
Gallery
Technical Infos
Product infos Cylinder Portal Co136
Product Features
- Weight: approx. 800 kg.
- Floor thickness: 65 mm.
- Supporting structure: 40/10 press-formed steel sheet.
- Laminated glass doors EN1063-BR3 EN356-P6B.
- Finish: embossed paint available in various colors from the RAL color chart
- Floor recess option: up to 65 mm
- Passage speed (with single passage control): 350 people per hour
- 180° passage
DRIVES AND SAFETY
- Door motors: 24 Vdc
- Reversible external door gear motor
- Safety system
- – torque control integrated into the movement
- – pneumatic edges with open circuit air flow detector
- Encoder system
- – door position control
- – door speed control
- Weighing system with load cells for control:
- – presence of person
- – single passage (anti-hostage function)
- – object left in the passageway (weight greater than 200g)
- Emergency button
- Ceiling light with voice synthesis
- Traffic light and voice signals to guide transit in both directions
ELECTRICAL CHARACTERISTICS
- Supply voltage: 24 Vac
- Backup battery: 2x 12V, up to 8 hours of autonomy (200 passages)
- 230/24 Vac isolation transformer, insulation class 2, supplied
CE CERTIFICATIONS: Machinery Directive, electromagnetic compatibility, low voltage safety
