Square base mantrap (L1050), high security portal with interlocking doors system

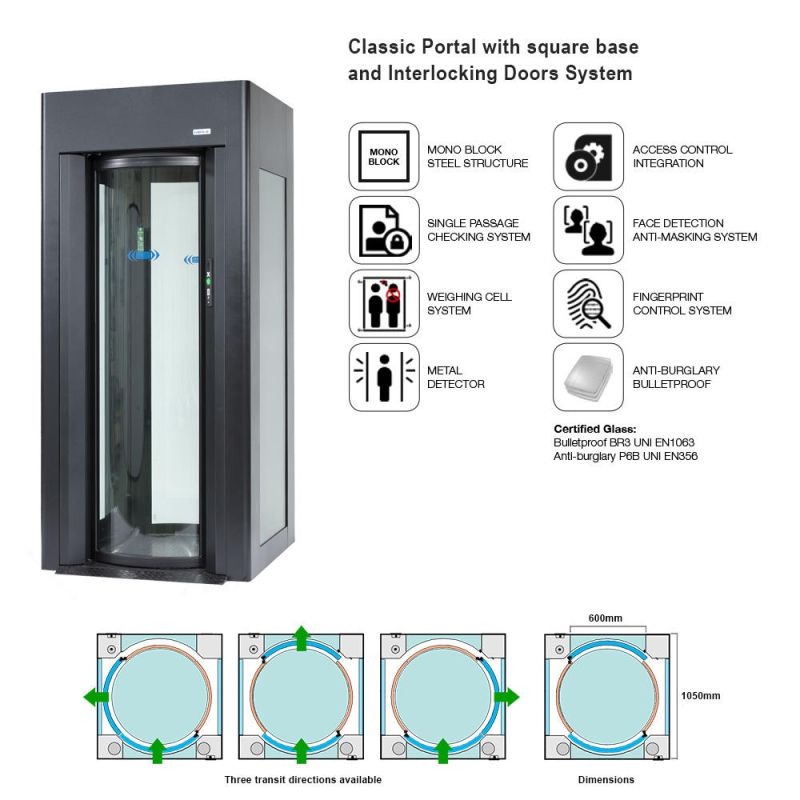

Co135 Classic Portal with interlocking doors system

High security portal with square base, single person passage checking system and abandoned item detection. Mantrap with interlocking doors, designed as access control gate for: banks, financial institutes, companies, embassies, datacenters, prisons, miisteries, jewelleries and value protection areas. The second door opens only if control systems give positive result.

Fully self-managed. Person transit automatically managed, with voice commands during the transit steps (multilanguage messages). It can be equipped with metal detector and access control systems such as: badge readers, RFIDs, NFCs, fingerprints and/or anti-masking systems.

Three models:

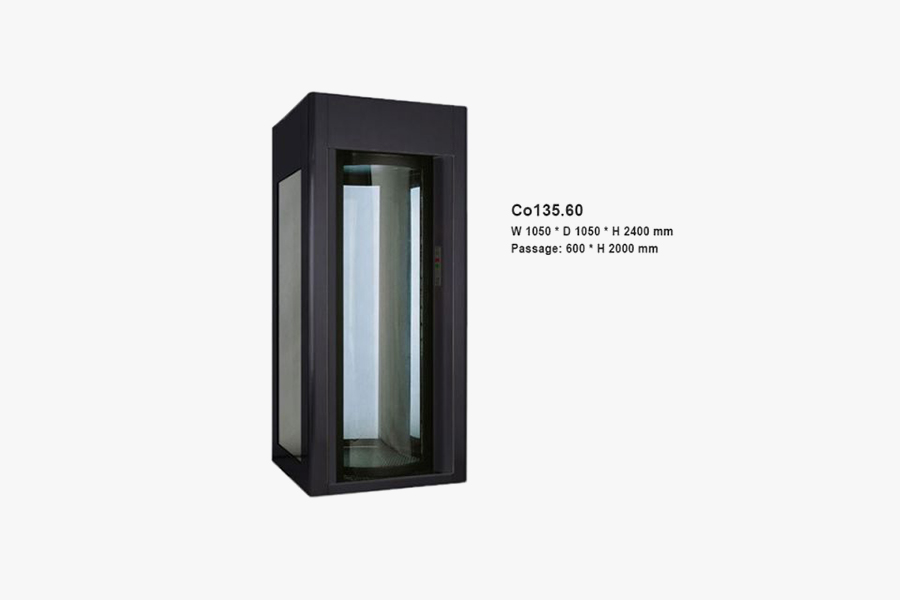

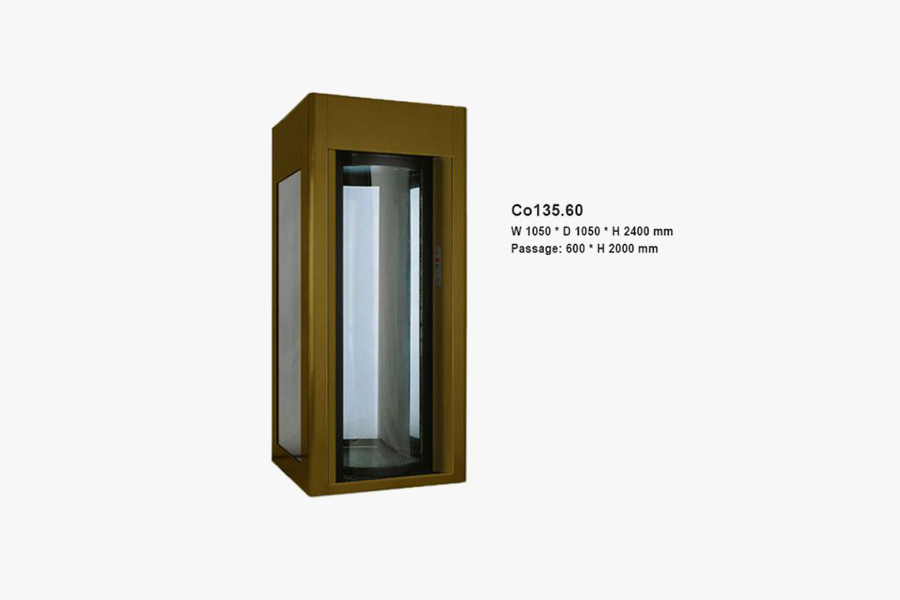

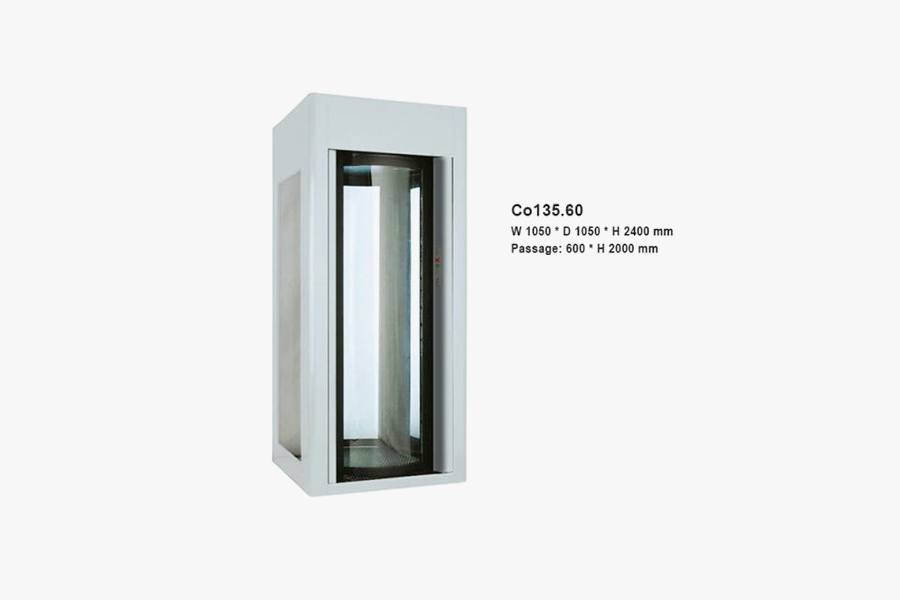

Co135.60: W 1050 * D 1050 * H 2400 mm | Passage: L 600 * H 2000 mm
Co135.R60: W 1050 * D 1050 * H 2340 mm | Passage: L 600 * H2010 mm
R = Ribassata (lowered)

Interlocking Security Portals

CoMETA Co135 Series

cometa-co135-security-portal-webpage_26984_7739_t

Gallery

Technical Infos

Product infos Classic Security Portal Co135

Options and Accessories

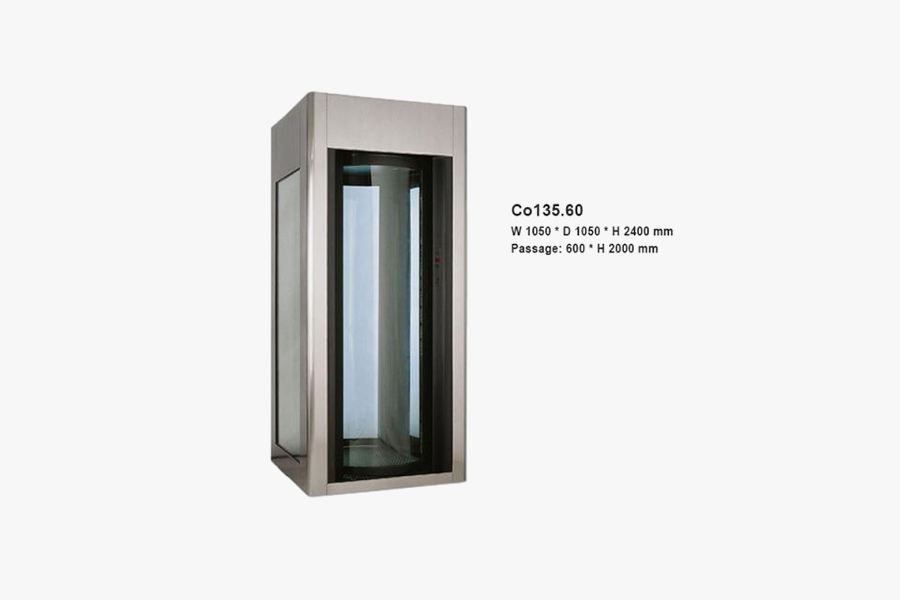

Stainless steel cladding
Solid side panels
Option of an armoured internal door with a bulletproof laminated glass window (EN1063-BR3)
Option of armoured side panels

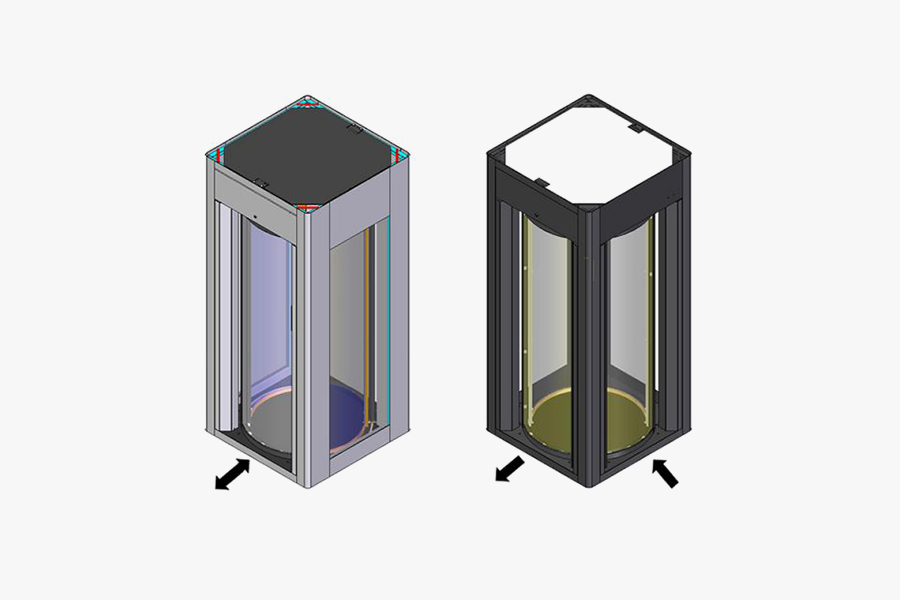

Passage 180°, 90° right or 90° left swing
Emergency exit management
Cameras
Badge reader
IR sensor for detecting human presence
BIOBANK biometric registration system
Anti-masking facial analysis system
CEIA metal detector (various models)
Web console
IP concentrator module for remote assistance / remote management
Very small object recognition function (up to 50g)
Reversible internal door gear motor
