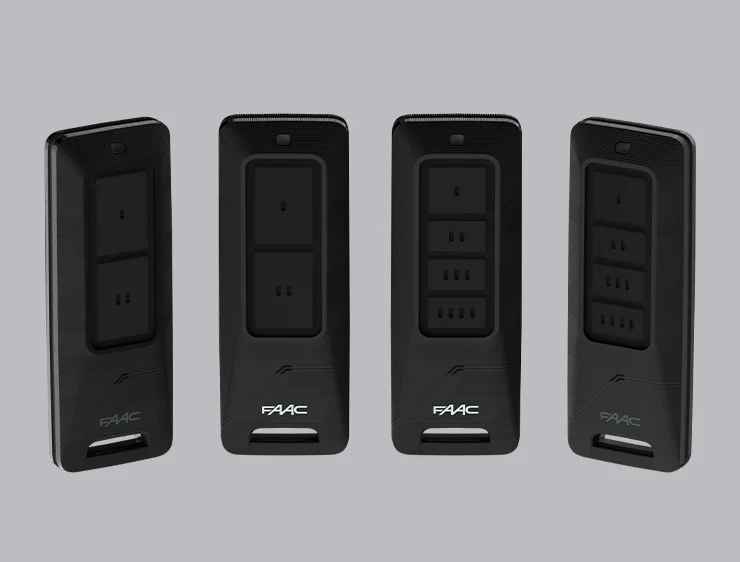

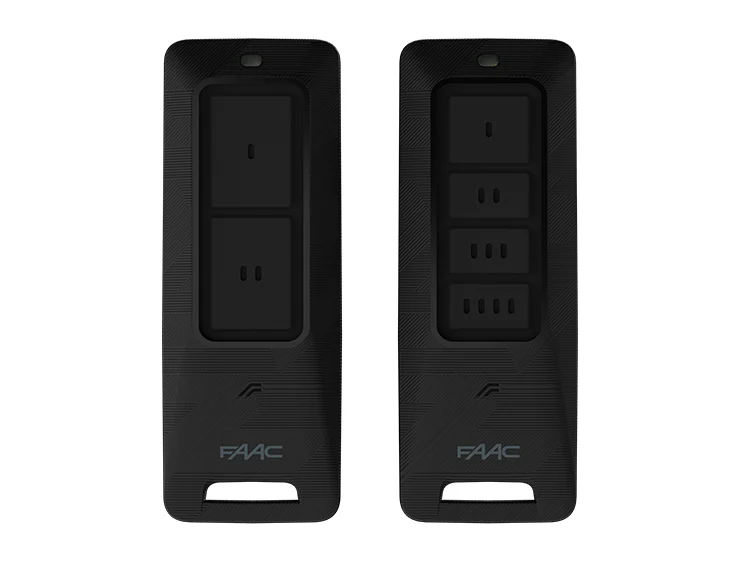

433 and 868 MHz 2- and 4-channel transmitter

Use frequency 433,92 – 868,35 MHz

Type of code: FDS technology

FDS = FAAC DIGITAL SIGNATURE: Radio protocol based on frequency modulation with top performance in terms of range and battery life; radio transmission is protected with AES-128 symmetric encryption algorithm with 128bit key. The authenticity of the remote controls is verified by means of a chain of FAAC customized security certificates.

Advantages

Maximum security against cloning obtained by the advanced security scheme empowered by the adoption of Secure Vault™ (PSA™ certified Level 3) and TrustZone® hardware technologies: the “state-of-the-art” to secure digital financial transactions and IoT High Security devices/networks.

Double frequency: transmitters and receivers are able to communicate at 868MHz- 433MHz in time sharing, no more need to choose the working frequency in advance, thus simplifying the management of installation/maintenance activities.

Ease of registration: new simplified registration/management procedures of the radio transmitters both via SELF LEARNING and direct registration on the receiver.

SLH compatible: FDS transmitters can, in case of need, be used on exisiting SLH systems.

PHYGITAL solution: FDS transmitters are the first FAAC PHYGITAL trasmitters.

Thanks to the Simply Connect integration the complete remote management can be achieved (addition of individual or group of transmitters via Matrix-Code, possibility to remove, enable, disable transmitters and manage the operating time bands) with no need of using dedicated tools and being onsite.
