REVOLVING DOORS

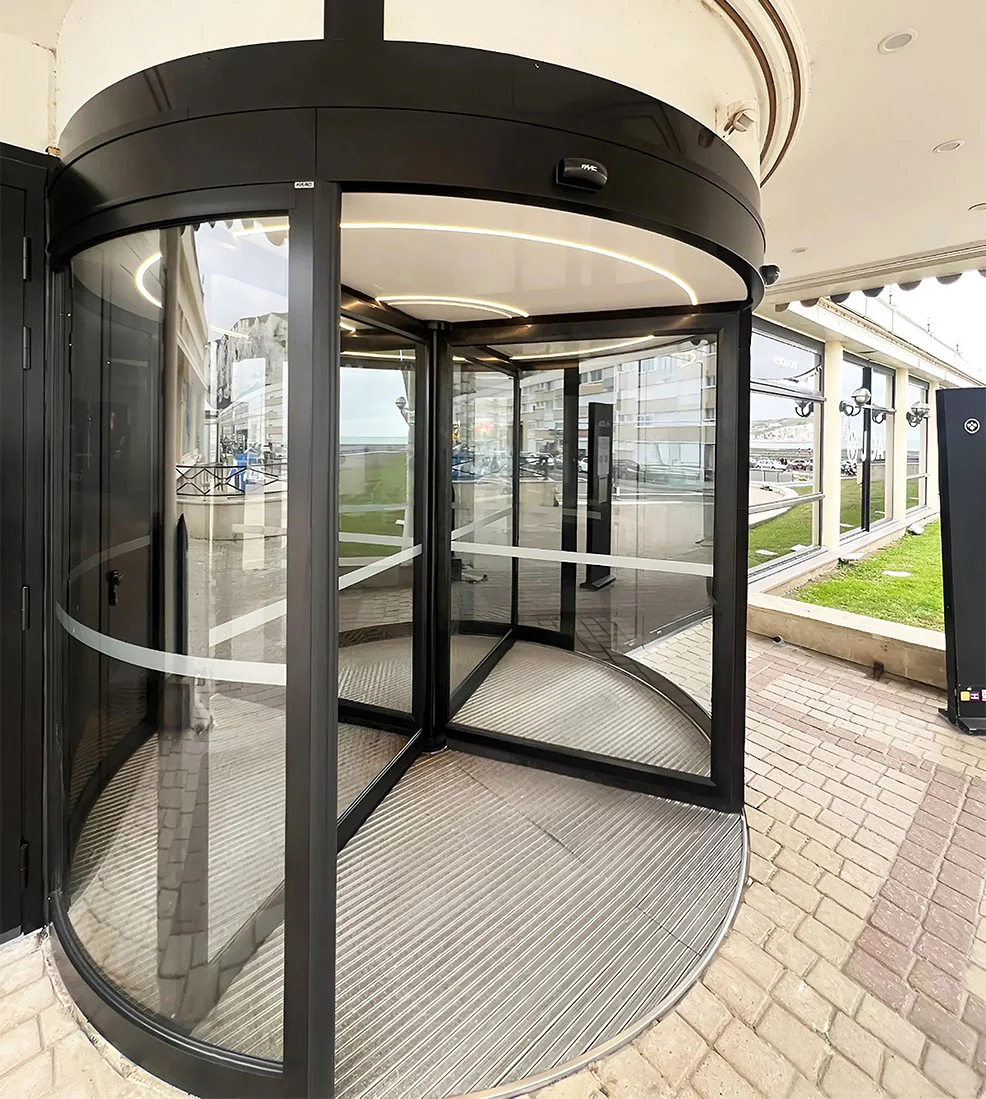

Revolving Door
The FAAC AG4000 revolving door is expertly crafted to elevate entryway design with innovation, safety, and versatility.
The AG4000 transforms entrances into welcoming gateways, blending aesthetic appeal and performance to enhance any architectural vision, while maximizing efficiency.
-
Optimal protection against drafts, heat, and cold, with low standby consumption (<0.5 W).
-
TÜV certified system with safety edges and laser sensors, optimized stopping distances in compliance with UNI EN 16005.
-
Secure, monitored entry with integrated access control system.
-
Long-lasting, reliable, quiet, and smooth brushless motor.
-
Brand new selectors, safety sensors, accessories and LED lights.
-
Emergency breakout system for escape route, for rapid, safe evacuation with collapsible wings.
Automatic Revolving Doors Designed for Modern Entrances
FAAC automatic revolving doors combine elegant design with advanced engineering to create entrances that are efficient, secure, and comfortable to use. Our range is ideal for busy commercial buildings, these revolving door systems maintain a continuous flow of people while helping reduce energy loss compared to traditional entrance doors.
By minimising the exchange of indoor and outdoor air, they help maintain comfortable indoor temperatures and improve the overall efficiency of heating and cooling systems.
Every revolving door is designed for smooth, quiet operation and can be tailored to suit the architectural style of the building. Whether installed in an office tower, hotel, healthcare facility, or shopping centre, FAAC delivers entrance solutions that balance performance, aesthetics, and long-term reliability for businesses across New Zealand.
Security, Access Control and Seamless Performance

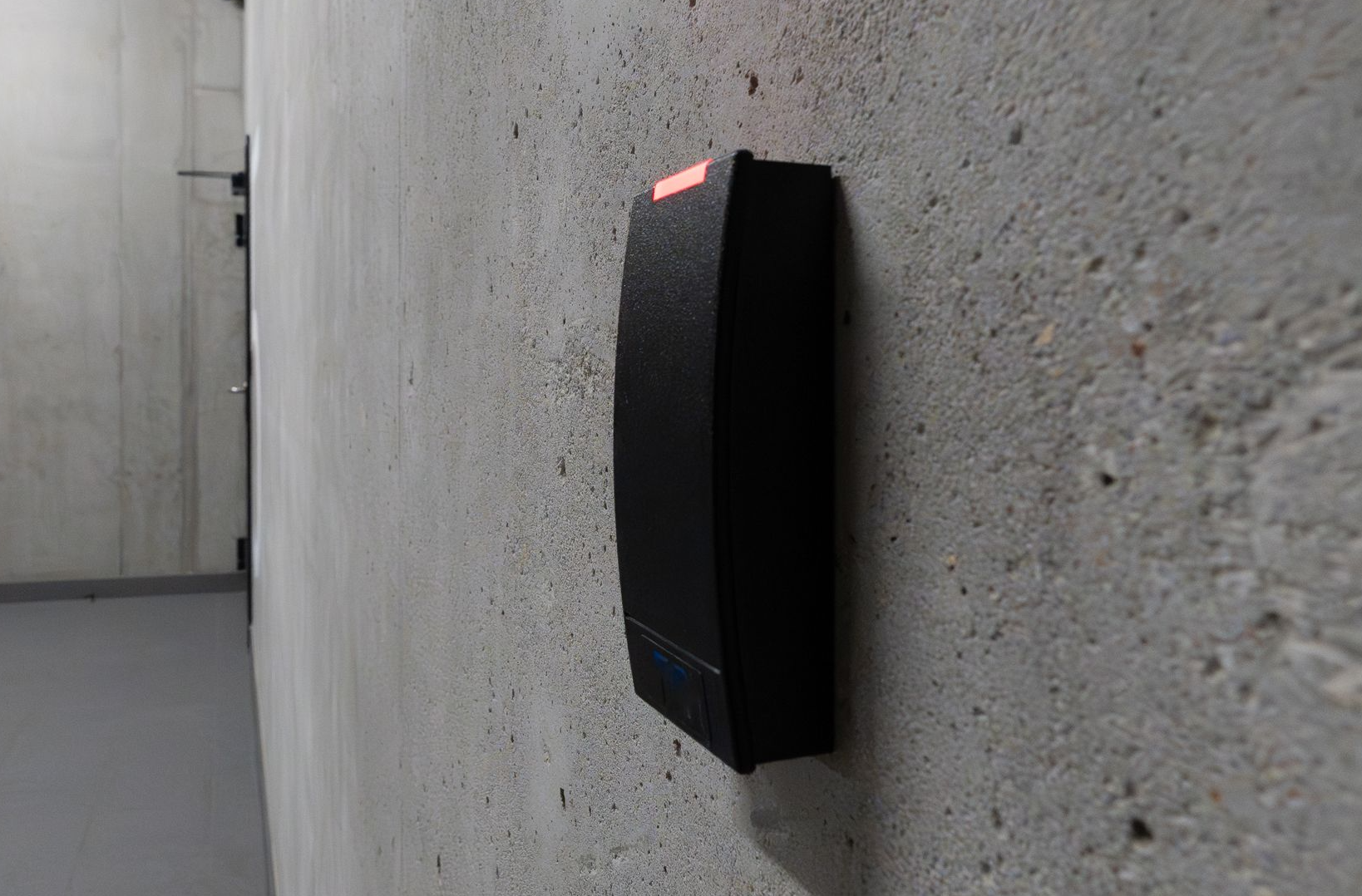

FAAC security revolving doors provide more than an impressive entrance, they become an active part of your building’s security strategy. By integrating access control technologies, businesses can manage authorised entry while maintaining a smooth flow of pedestrian traffic.
A revolving door from FAAC allows buildings to combine convenience with a higher level of access control, security, making these systems well suited to corporate offices, government facilities, financial institutions, and other controlled environments. Advanced sensors continuously monitor door operation, ensuring safe movement while maintaining reliable performance throughout the day.
Built using premium materials and proven engineering, FAAC revolving door systems are designed to withstand constant use while delivering the dependable operation expected from a global leader in entrance automation.
Market Sectors
FAAC automatic revolving doors are suitable for a wide variety of commercial and public environments where energy efficiency, security, and smooth pedestrian movement are equally important. Whether the priority is welcoming visitors, improving access control, or managing high volumes of foot traffic, our revolving door systems can be tailored to meet the needs of almost any project.
Suitable applications include:
- Corporate offices
- Hotels and hospitality
- Healthcare facilities
- Shopping centres and retail
- Airports and transport hubs
- Casinos and Event Centres
- Government and public buildings
- Financial institutions
With over 60 years of innovation, FAAC delivers entrance solutions and security revolving doors that combine sophisticated design, proven engineering, and long-term reliability for organisations throughout New Zealand.
Focus on AG4000 Revolving Door
Easy maintenance
The control board and motor are easily accessible for simpler programming and maintenance.
• External control unit access
• Quick mechanical inspection

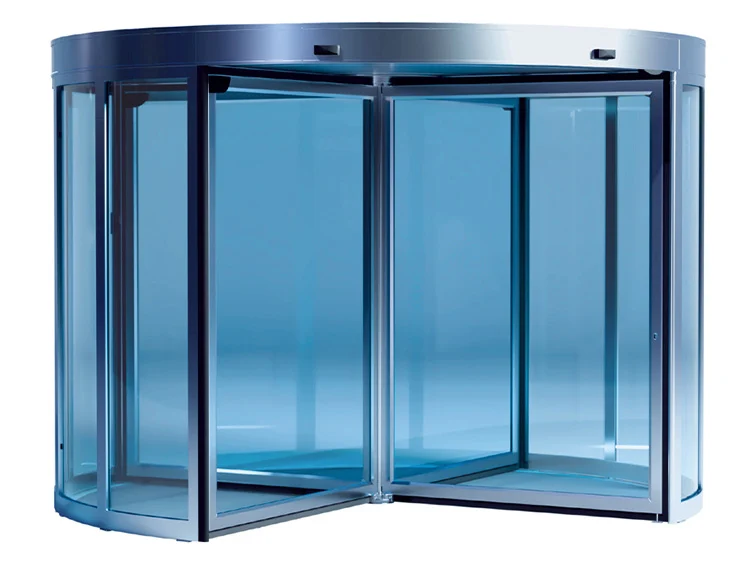

AG4000 – Compact 3- or 4-Wing Revolving Door
The compact AG4000 revolving door is available with 3 or 4 wings and offers internal diameters from 1800 to 3600 mm, with passage heights from 2100 to 3000 mm. Designed for compact entrances, it combines elegant design, certified safety, and smooth pedestrian flow while minimizing energy loss.
The AG4000 is also available with integrated Access Control, including software, sensors, people-counting, and electromagnetic locks, enabling secure and controlled access management with anti-tailgating and anti-piggybacking functions. In the Access Control version, internal diameters range from 1800 to 2400 mm.
Technical Infos
Product information AG4000
Technical Description
TECHNICAL DATA
| Parameter | AG4000 |
|---|---|
| Protection rating | IP20 |
| Actuator control protection rating | IP54 |
| Glass panels | |
| Standard revolving leaf glass | Clear laminated safety glass 3+0.38+3mm (EN12600/2B2) |
| External drum walls glass panel and standard night closure | Clear laminated safety glass 4+0.76+4mm (EN12600/1B1) |
| Non condensing humidity | 85% |
| Use frequency | Continuous use |
| Ambient operating temperature | -20 °C ÷ +55 °C |
| LED internal lighting | |
| Colour temperature | 4000K |
| Power consumption | 10 W/m |
| Backup batteries | 1800mAh NiMh 24V 1-3 minutes to reach the rest position and disengage the anti-panic system, if supplied |
| Weight (kg) | Please refer to the documentation supplied with the product |
| Maximum noise emission | Lpa≤70 dB (A) |
| Electrical data | |
| Power supply voltage | 100-240 V~ 50/60 Hz Mains fuse 10 A (installed in the building) |
| Maximum power | 350 W |
| Power in low consumption mode | < 0.5 W (off mode) |
PRODUCT FAMILY – SCOPE AND OPTIONS
| Internal Diameters | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| 1800 | 2100 | 2400 | 2700 | 3000 | 3300 | 3600 | |||
| Door Set | 3 – Wings | — | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 4 – Wings | — | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
| Rigid Door Set |
— | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
| Escape Route |
EM Breakout |
— | O | O | O | O | O | O | O |
| Dimensions | Entrance Height |
2100mm | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Variable in 100mm increments to 3000 | O | O | O | O | O | O | O | ||
| Canopy Height |
200mm | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
| Variable in 100mm increments to 1250 | O | O | O | O | O | O | O | ||
| Functionality | Operating Mode |
Automatic | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Semi-automatic with Adaptive Speed Control | ✓ | ✓ | ✓ | ✓ | ✓ | X | X | ||
| Power Assist with Speed & Parking Control as standard | ✓ | ✓ | ✓ | ✓ | ✓ | X | X | ||
| Access Control, single or bi-directional* | ✓ | ✓ | ✓ | X | X | X | X | ||
Anti-tailgating included as standard. Anti-piggybacking optional for 1800 and 2100 diameters only.
Standard Specification ✓
Optional Specification O
Not Available X
