Wall mounted Photocells

Perfectly slim, incredibly powerful.

A range of 30 metres, and a depth of 21 millimetres. XP30 photocells are extremely compact. A 55 × 78 mm surface with such a limited projection as to keep them safe from passing vehicles.

BUS 2easy technology

With the XP30B family equipped with BUS 2easy, you can connect up to 16 pairs of photocells to the same control board without any interference. With BUS 2easy, complex systems become simple.

Channel selection

The XP30 relay models enable simple channel selection at the push of a button. The encoding of the signal prevents any interference between TX and RX and permits 4 pairs of photocells to be installed at short distances.

No glare, just practicality

All XP30 models are protected against interference from external light sources, including LED car lights. All XP30 models can easily replace both wall- and flush-mounted Fotoswitch and Photobeams.

Technical Description
Download

XP 30 Wall Photocells

Small casing, great design

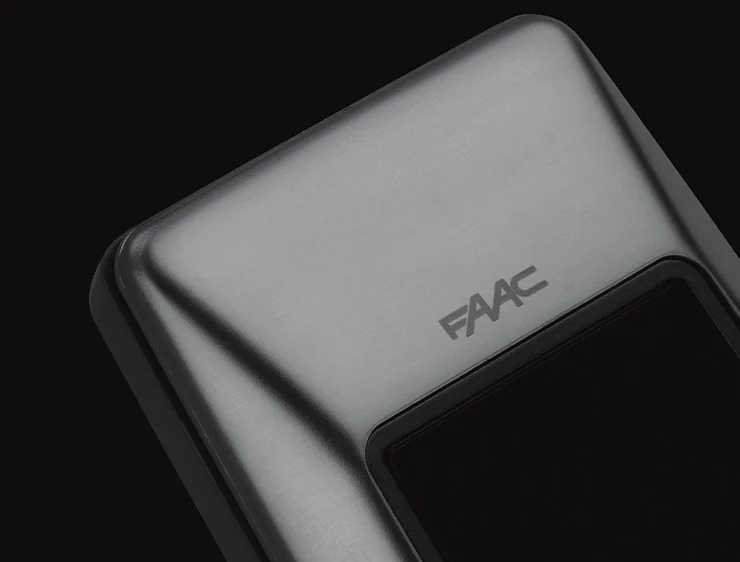

Compact, solid, slim: XP30 models blend into all architectural contexts, from the most classic to the most minimal. XP30 INOX models are all-metal, covered in satin-finished steel, the only ones available on the market.

Technical Infos

Product infos XP 30

Technical Description
Model Item code
XP 30 785105
XP 30 INOX 7851051
XP 30B 785106
XP 30B INOX 7851061
  • Power supply voltage 24V DC – 24V AC (XP 30)
    BUS 2easy, 2-wire non-polarised 24V DC (XP 30B)
  • Max photocell distance 30 m
  • Installation type Wall-mounted
  • Self-alignment angle ± 7° (at 20 m) ± 13.5° (at 5 m)
  • Dimensions (LxDxH) 55,4 x 21,5 x 78,4 mm
  • Power consumption Rx (30 mA) + Tx (20 mA) (XP 30) Rx (25 mA) + Tx (15 mA) (XP 30B)
