    Control keypads – Electronic pulse generator

    Small devices, outstanding technology

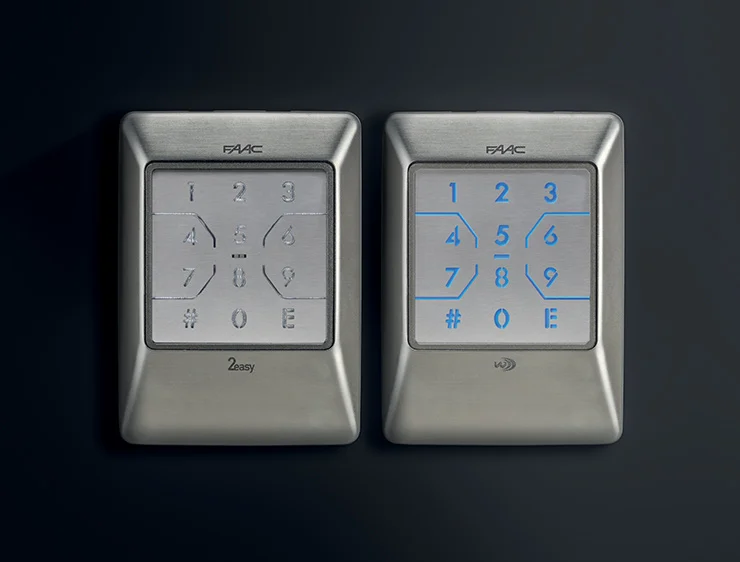

    Innovation and design come together in the XKP W 433, XKP W 868 and XKP B control keypads. Up to 255 user codes for automatic doors.

    Functional design

    The keyboards are activated when an alphanumeric combination is entered and it is possible to select one of two operating modes:

    • EASY: each user code is associated with only one command.
    • ADVANCED: each user code activates one, several, or all available commands.

    Easy connection with BUS 2easy

    The XKP B model is equipped with BUS 2easy technology that uses two non-polarised wires. It connects to:

    • Control boards equipped with BUS 2easy, in 1 command or 2 command mode
    • BUS XBR2 and XBR4 interfaces, to control boards that are not equipped with a bus or for other uses, with 2 or 4 available commands

    Guaranteed security: even if tampered with, the short-circuiting of the cable does not transmit the command.

    BUS 2easy is natively monitored.

    Technical Description
    Download

    XKP Control Keypads

    Remarkable resistance

    All models are made from high quality materials: painted aluminium base, stainless steel keyboard cover and surface with blue LED backlighting. The robust keypads can be used even in the most adverse weather conditions: they are resistant to rain, snow and humidity and can be used without having to take off your gloves.

    Wireless: patented technology

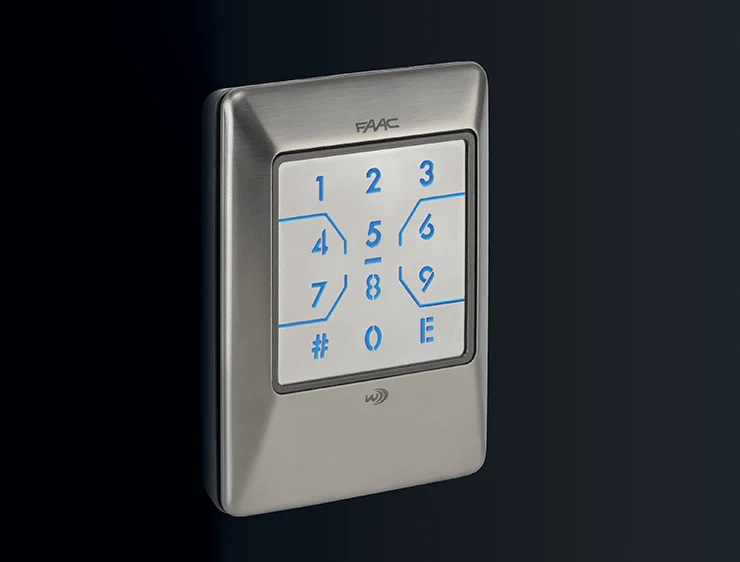

    The wireless battery powered XKP W 433 and XKP W 868 models do not require wiring and can transmit up to 4 different commands. The patented SLH FAAC technology, which is compatible with all the corresponding receivers and transmitters, changes the code each time the keypad is used in order to guarantee maximum security.

    Technical Infos

    Product infos XKP

    Technical Description
    Model Item code
    XKP B INOX 404039
    XKP W 433 INOX 404037
    XKP W 868 INOX 404038
    • Power supply voltage Bus 2easy, with 2 non polarised wires 24 V DC (XKP B) ; Battery powered CR2450 3 W qt. 2 (XKP W)
    • Installation type Wall or on column installation
    • Protection class IP54
    • Frequency of use 433.92 MHz – 868.35 MHz (XKP W)
    • Dimensions (LxDxH) 72 x 21 x 100 mm
    • Operating ambient temperature -20 °C +55 °C
    • Maximum number of users’ codes 255
    • Maximum number of commands 2 (up to 4 with the XBR4 adapter) (XKP B) ; 4 (XKP W)
