• Security Portal

Security Cabin

The CT series Portals represent one of the architectural solutions for the construction of emergency entrances. Particularly suitable for ministries, banks, industries and airports.

Depending on the need, CT484 is available assembled (standard) or in parts to be assembled on site (optional); a feature that allows them to satisfy the widest space requirements related to transport and introduction into the premises.

Download

Technical Infos

Product infos CT484

Technical Description

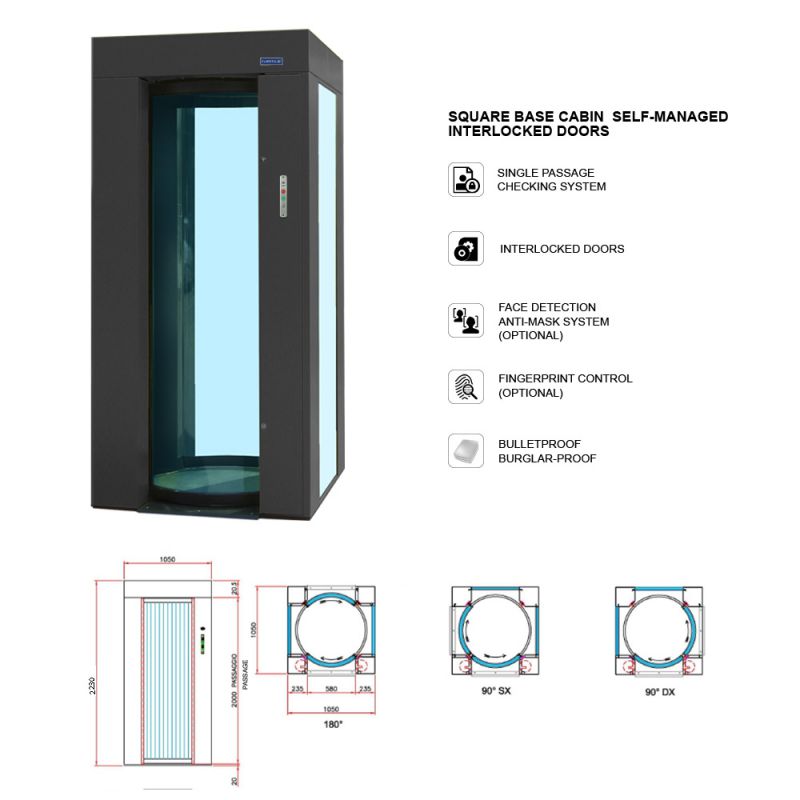

Dimensions CT484 L 1050 x P 1050 x H 2230 mm
Free Passage Area CT484 L 580 x H 2000 mm
Weight From 700 Kg up to 1050 Kg according to the model and additional options.
Power Supply 100 – 240 VAC, 50/60 Hz
Voltage 12–24 V DC with backup batteries for uninterrupted operation in case of power loss (from 100 up to 1000 cycles).
Consumption 85 W
Throughput 3–4 full cycles (one-way); 4–6 full cycles (two-way), depending on the model and additional options.
Frame Demountable painted steel frame 30/10;
Steel sides on applications;
Non-slip resin-coated transit floor, 25 mm thick (cabins do not need to be recessed).
Painting & Finishing (RAL) Standard RAL 9011 colour with textured finish. Glossy finish, stainless steel, and special colours available on request.
Glass Bulletproof glass doors and sides, 20/21 mm BR2/S P6B. Different crystal thicknesses available on request.
Lighting Internal lighting with 12 V, 50/60 Hz LED spotlights.
Movement 24 V DC electric motors with assisted sliding door movement and reversible option for manual opening in case of total power loss.
Electronics Microprocessor-based electronics.
Accident Prevention Measures Self-adjusting braking, speed control, and accident prevention devices.
Programmable Options Emergency escape, automatic/manual door locks, transit passage in one or both directions.
Options and Accessories

Accessories and Equipment

  • Main logic board, self-diagnosis
  • Standard RAL 9011 with orange peel finish
  • Emergency pushbutton
  • Multilingual voice messages
  • Led spot light 12 V
  • Fail safe locking piston for external door
  • Fail secure locking piston for internal door
  • Possibility to insert Metal Detector
  • 2 back-up batteries 12 V – 7 Ah (120 cycles or 3h)
  • Menu guided command and setting console
  • Single transit, anti-hostage, object check, weighing system through loading cell

Optional on Request

  • RC 4 resistance level available according to the UNI EN 1627
  • Metal Detector
  • FB 4 bullet proof frame resistance level available according to the EN 1522
  • Certified glasses BR4/S P8B
  • Different RAL colour
  • Traffic light / intercom system
  • Application of magnetic stripe or proximity badge readers, biometric recognition systems
