Security Cabin

The CT496 series is the solution for a secure, quick and elegant access control. Automatic interlocked doors, round base, available both in painted steel and in stainless steel, they can be delivered in parts for on site assembly or already assembled.

A light structure gives a maximum, glazed surface area Equipped with curved doors controlled by a powerful motorized system, it provides rigorous control while maintaining a high flow passage (from 3 up to 4 passages per minute in the same direction and from 4 up to 6 passages per minute in alternative directions, according to the model)

Available in separate parts for local assembly can be easy installed also to the highest floors. They are available with 180, Ø 1050 mm and glass up to 26 27 mm

Download

Technical Infos

Product infos CT496

Technical Description

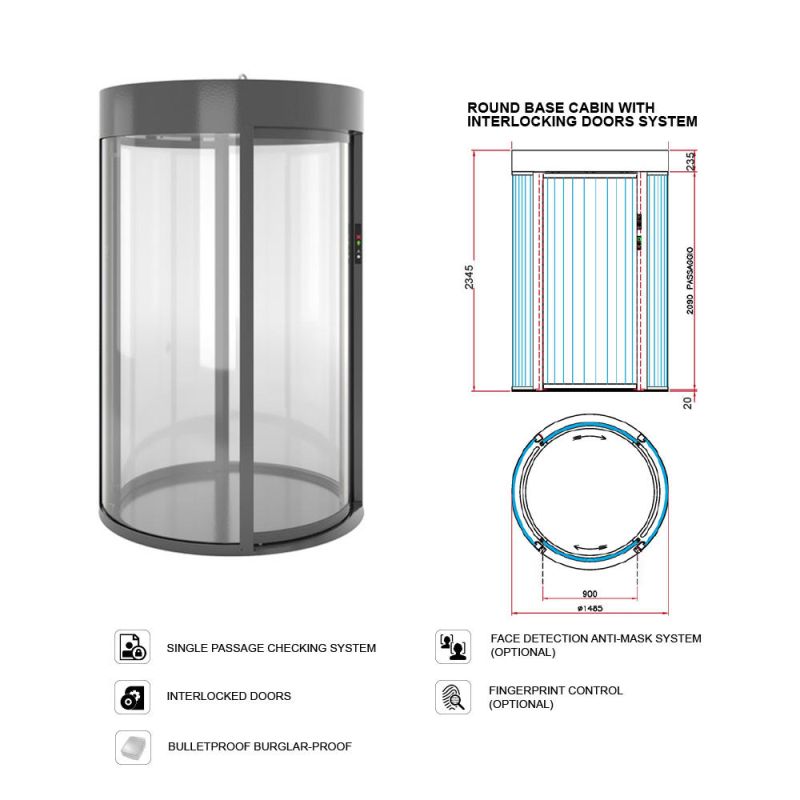

Dimensions	CT496 Ø 1485 x H 2345 mm
Free Passage Area	CT496: L 900 x H 2090 mm
Weight	Approximately 1000 Kg.
Power Supply	100 – 240 VAC, 50/60 Hz
Voltage	12–24 V DC with backup batteries for uninterrupted operation in case of power loss (up to 100 cycles).
Consumption	95 W
Throughput	3–4 full cycles per minute (one-way); 4–6 full cycles per minute (two-way), depending on the model and additional options.
Frame	Steel 40/10 construction; Available in separate parts for local assembly; 20 mm thick cabin floor as standard, with 12 mm thick floor available on request.
Painting & Finishing	RAL 9011 colour with orange skin finish. Flat finish, stainless steel execution, and other colours available on request.
Glass	Sliding doors and sides with 11/12 mm laminated P3A-rated glass. Different glass thicknesses available on request.
Movement	24 V DC electric motors with assisted sliding door movement and reversible option for manual opening in case of total power loss.
Lighting	Internal lighting with 12 V, 50/60 Hz LED spotlights.
Electronics	Microprocessor-based electronics.
Accident Prevention Measures	Self-adjusting braking, speed control, and accident prevention devices.
Programmable Options	Emergency escape, automatic/manual door locks, automatic/manual transit, and passage in one or both directions.

Options and Accessories

Accessories and Equipment

Main logic board, self-diagnosis
2 back-up batteries 12 V – 7 Ah (120 cycles or 3h)
Standard RAL 9011 with orange peel finish
Emergency pushbutton
Intercom voice messages
Led spot light 12 V
Fail safe locking piston for external door
Fail secure locking piston for internal door
Single transit, anti-hostage, object check, weighing system through loading cell

Optional on Request

RC 4 resistance level available according to the UNI EN 1627, for the CT496 model
FB 4 bullet proof frame resistance level available according to the EN 1522
Laminated glass BR4S P8B
Different RAL colour
Traffic light/intercom system
Application of magnetic stripe or proximity badge readers, biometric recognition systems
