Armored Portal, perfect solution for access control system for protected areas

Biometric Filter Portal

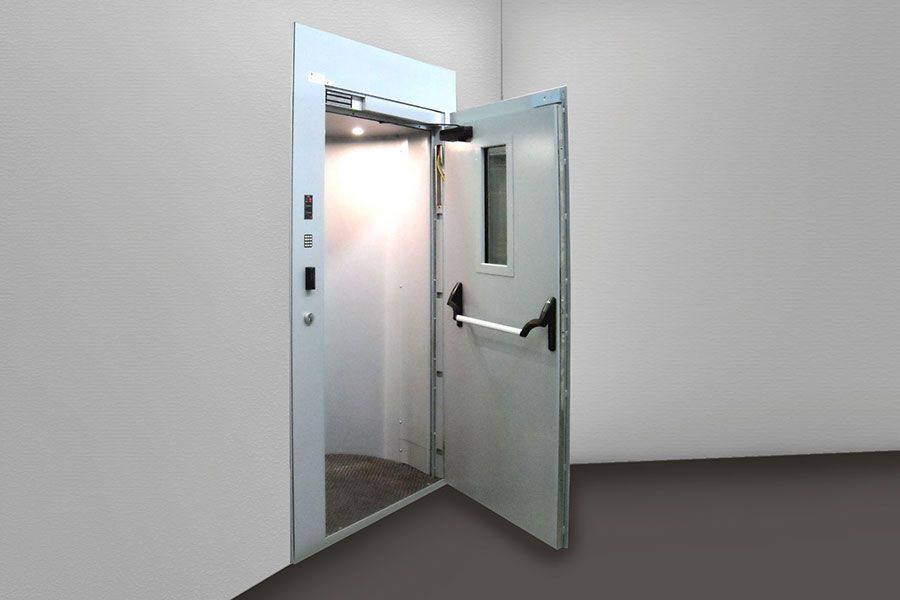

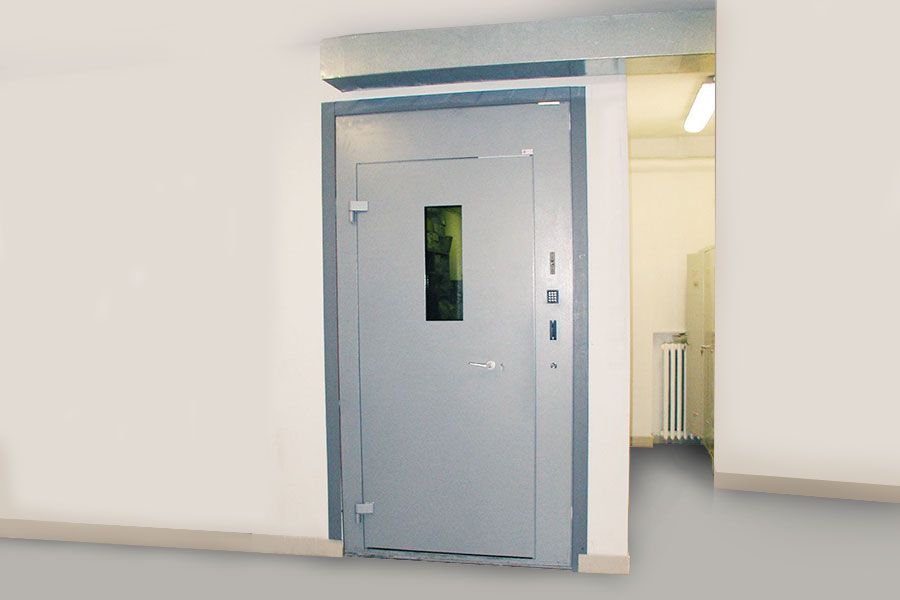

Interlocking armored Portal designed to grant a high level of security and a high level of safety. Its special structure has been conceived to resist against burglar attacks and, at the same time, thanks to the anti-panic push bar installed on the external door, to grant an escape route in case of emergency.

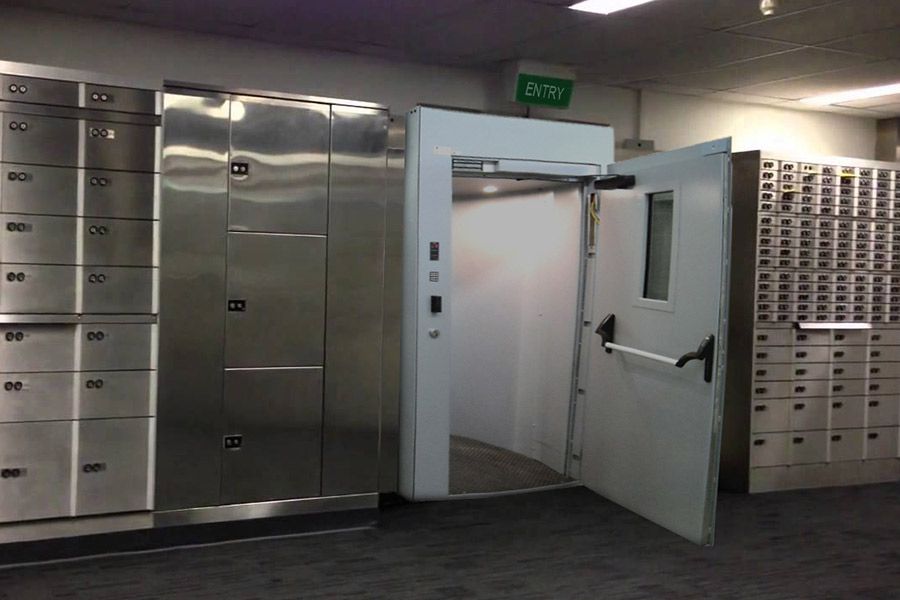

Biometric Filter Mantrap is suitable to protect vault rooms like in bank branches, post offices, surveillance institutes, conpanies, etc. and high restricted areas like airports control towers, data center rooms, etc.

In entrance, access is provided with the sequence of PIN code or badge, single presence control (with weight cells or volumetric control according to the model) and biometric data verification
In exit, it is possible to control single presence and biometric data.

Download

Gallery

Technical Infos

Product infos Armored Biometric Filter

Technical Description

Dimensions	W 1250 x D 1000 x H 2400 mm
Passage	W 800 x H 2000 mm
Weight	Approximately 825 Kg, depending on accessories and configuration.
Power Supply	230 V, 50/60 Hz (110 V available on request).

Structure

Mono-block, painted stainless steel with 3+5 mm thick
Low side door frame 3+5 mm
High side sliding door frame 3+3 mm
Armoured laminated steel ceiling 3 mm with anti-tamper top cover
Cabins floor: 37 mm thick

Options and Accessories

Single presence check inside the cabin with loading cells. Transit with customized weight, range of acceptance of, to be set by the client
Volumetric single passage checking system
One push button located on the internal side of the cabin to alarm and unlock both doors to allow exit. In case of black-out the internal push button unlocks the low door allowing exit unlock
Emergency push button
Low door with anti-panic push-bar suitable also for emergency escape
Electric motor assisted high side sliding door
Digital display, menu-guided command and setting console
Intercom, voice messages and traffic-lights
Easy-link to third party manufactured access control systems (RS232 – RS485 – IBIS interfaces)
Hidden microcameras inside the cabin
Proxy, swipe-card and biometric readers easily added
Electrical lock with 3 locking points for the low door with security roller with 3 un-duplicable keys
