Automatic Sliding Doors
Sliding Door with Built-in Air Curtain
- Sliding door with integrated air curtain.
- Suitable for areas open to the public such as shops, supermarkets, offices, banks, hospitals, airports and railway stations.
- Possibility of adding an integrated automatically resetting anti-panic breakout system in compliance with European Standard EN 16005.
- By combining the door with FAAC SERIES A1400 AIR automated system, thanks to its innovative ‘Energy Saving’ device, it identifies the walking path and perfectly optimises opening/closing times thus avoiding unnecessary air dispersal, even in the event of cross traffic.
- Product features: energy efficiency up to 62%, air quality up to 62%, improved environmental comfort up to 48%.
| Passage Opening | 2.500 – 4.800 mm |

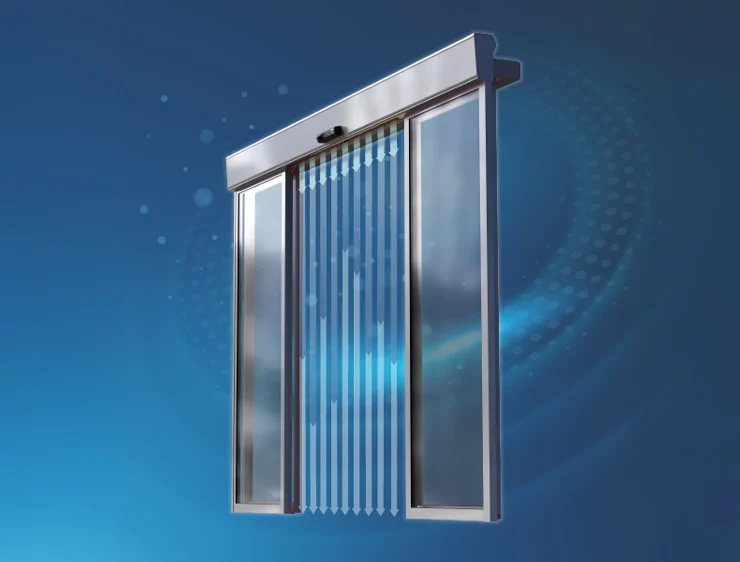

Focus on AIRSLIDE
Air Quality and Environmental Comfort
An effective protection because it limits the entry of smog, dust, dirt and insects from the external environment.
Installing a FAAC sliding door with an AIRSLIDE system is always the ideal solution to ensure the very highest standards of comfort, because it guarantees a considerable reduction in irritating drafts from the door.
Energy Efficiency
An air barrier protects the entrance area from the cold in winter and the heat in summer, without dispersion. This solution, designed for automatic entrances, allows the air to be kept inside the building, thereby helping to reduce energy consumption.
Technical Infos
Product infos AIRSLIDE
Technical Description
| Model | Item code |
| AIRSLIDE | 1055661 |
- Power supply voltage 220-240 V~ – 50/60 Hz
- Electric motor Single-phase asynchronous motor
- Max absorbed power 160 W (single motor) – 330 W (double motor)
- Use frequency 100%
- Motor rotation speed 2850 rpm
- Fan diameter 80 mm
- Fans’ length 360 mm – 500 mm
- Transom dimension (DxH) 182,1x 252,5 mm (Grill included)
- Speed of air exiting the grids (0÷2,8 m) 15.3 – 3.7 (m/s)
- Airflow capacity (m3/h) 1250
- Sound level (dB) at 5 m 49,5 – 57,5
- Operating ambient temperature – 20° C / + 55° C
- Protection class IP23 (AIRSLIDE) – IP54 (E1AS control board)
