• Automatic Sliding Doors

Sliding Door Automation

  • FAAC A1400 AIR SERIES automated systems are intended for the automation of exits in compliance with European Standard EN16005; in fact they are able to meet the most strict security standards according to EN 13489-1 PL C.

  • Thanks to its innovative ‘Energy Saving’ device, it identifies the walking path and perfectly optimises opening/closing times thus avoiding unnecessary air dispersal, even in the event of cross traffic.
MAX Leaf Weight 200-2×110 / 2×120-4x60Kg (Telescopic version)
250-2×180 Kg (DM version)
Passage Opening 700 – 3.000 mm (Standard version)
1100 – 4.000 mm (Telescopic version)
800 – 3.000 mm (DM version)
Technical Description
Download

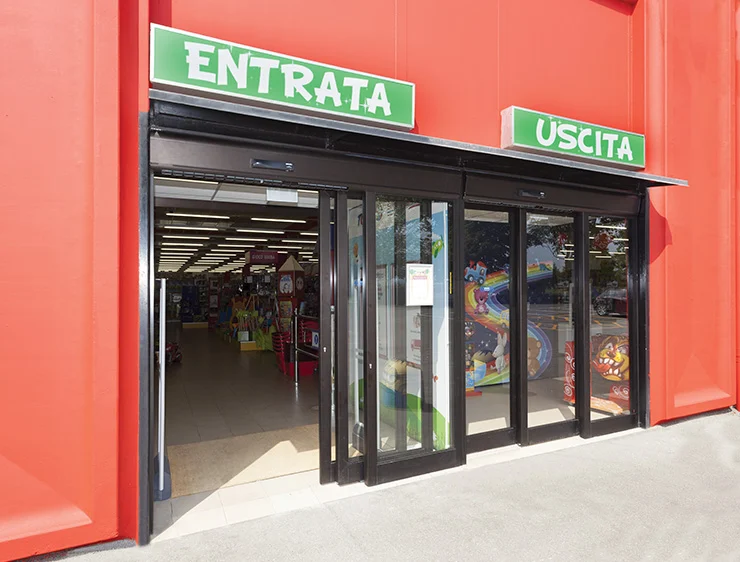

Focus on A1400 AIR

Energy Saving

The FAAC A1400 AIR SERIES automations are designed to automate entrances in compliance with European standard EN 16005; in fact, they are able to meet the most stringent safety requirements of EN 13489-1 PL C.

Its innovative “Energy Saving” device enables it to identify the direction of transit and optimises opening / closing times perfectly to avoid unnecessary air dispersion, even in the event of cross traffic.

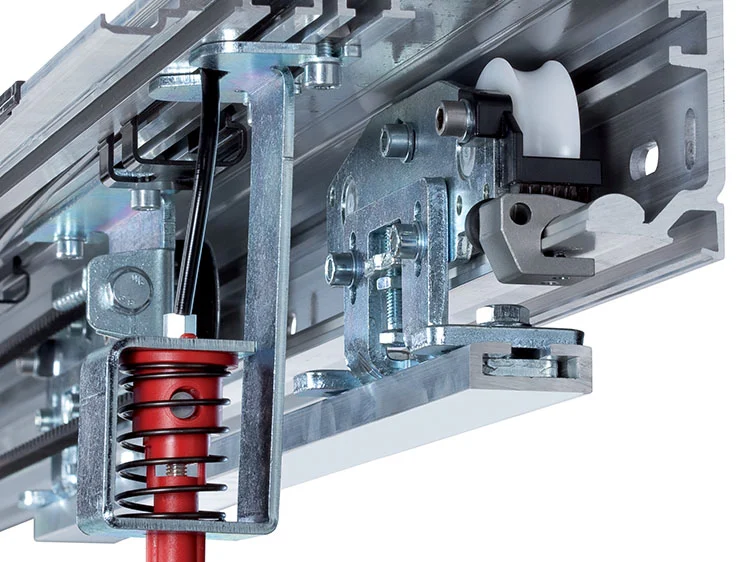

Sliding carriages

Carriages with sliding wheels made of synthetic material mounted on bearings and reinforced for double motor versions. Sliding on an anodised aluminium track integrated into the profile.

Technical Infos

Product infos A1400 AIR

Technical Description
Model Leaves Item code
A1400 AIR 1 Single 105037PA
A1400 AIR 2 Double
A1400 AIR A 1 Single
A1400 AIR A 2 Double
A1400 AIR DM 1 Single
A1400 AIR DM 2 Double
A1400 AIR T 2 Single Telescopic 105039PA
A1400 AIR T 4 Double Telescopic
A1400 AIR A T 2 Single Telescopic
A1400 AIR A T 4 Double Telescopic
  • Power supply voltage 220-240 V~ – 50/60 Hz
  • Max power 140 W
  • Standby power 3 W
  • Use frequency 100%
  • Max leaf width 65 mm
  • Electric motor Motor powered at 36V with encoder
  • Max accessories load 1A – 24V
  • Type of traction By means of toothed belt
  • Opening and closing leaf time 10 ÷ 60 cm/s (1 leaf) – 20 ÷ 120 cm/s (two leaves)
  • Partial opening adjustment 5% – 95% of total opening
  • Pause time 0 – 30 s or Energy Saving function
  • Night pause time 0 – 240 s
  • Encoder As standard
  • Protection sensor monitoring (EN16005) As standard (may be excluded)
  • Low energy movement (EN16005) As standard (may be excluded)
  • Operating ambient temperature -20°C ÷ +55°C
  • Protection class IP 23 (for internal use only)
  • Compliance with regulations EN 16005; EN 13489-1 PL C ; EN 13489-2; EN 60335-1; EN 60335-2; EN ISO 12100; EN 61000-6-2; EN 61000-6-3
