Automatic Sliding Doors
Automatic Burglar-Proof Entrance with Built-in Air Curtain
- Complete automatic door consisting of a robust self-supporting extruded aluminium frame with 35 mm profiles, featuring a special anti-intrusion profile.
- Shatterproof glazing in class P5A from 44.6/10/33.2, on request, with low-emission characteristic, or in class P6B from 66.8-6-33.2.
- Certified both with and without built-in air curtain.
- Flush-mounted stainless steel floor guide with continuous ground track across the entire width of the sliding doors.
- Finishing of doors and structure by oxidation or painting in RAL colours.
- Multi-point security lock system installed on the vertical uprights of the mobile doors.
- Thermal and acoustic closure by perimeter brushes.
- Door life cycle: 1 million cycles, which contributes to the overall sustainability of the product.
| Passage Opening | 850 – 1.800 mm |
Focus on TK35 RC 3
Maximum tamper-proof security

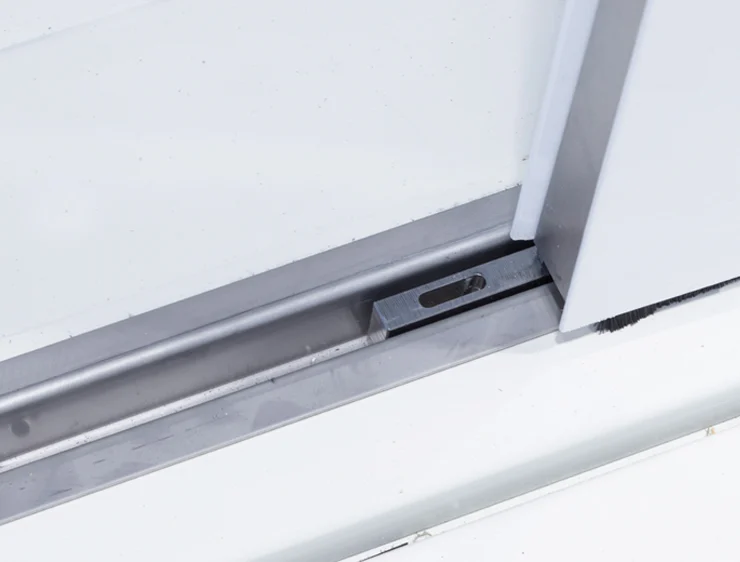

A continuous floor guide at the bottom of the door and a special tamper-proof device prevent door leaves from being forced open.
Certification EU
Class RC 3 certification in accordance with the European EN 1627 standard guarantees a high level of security against break-in attempts by experienced thieves using hand tools such as wedges,screwdrivers, pincers and crowbars.
Technical Infos
Product infos TK35 RC 3
Technical Description
- Use frequency 100%
- Operating temperature range -20 – +55°C
TK35 RC 3 must always be used with a FAAC automated system.
