Swing Gate Automation
24V Electromechanical Operator
| Max single leaf width | 2.3 – 2.7 m (with electric lock) |
| Use frequency | Continuous use |

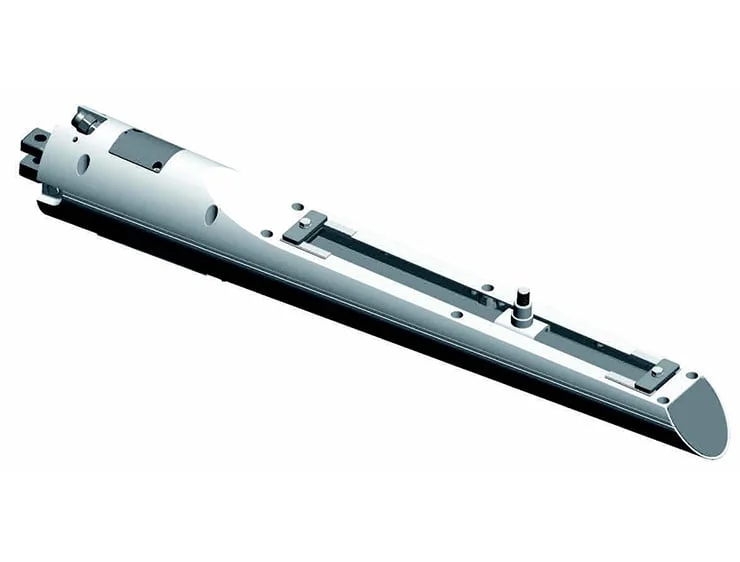

Focus on S418 Swing Gate Operator
Installation flexibility
Useful stroke of 350 mm (380 mm without mechanical stops) to ensure greater flexibility in selecting installation dimensions.

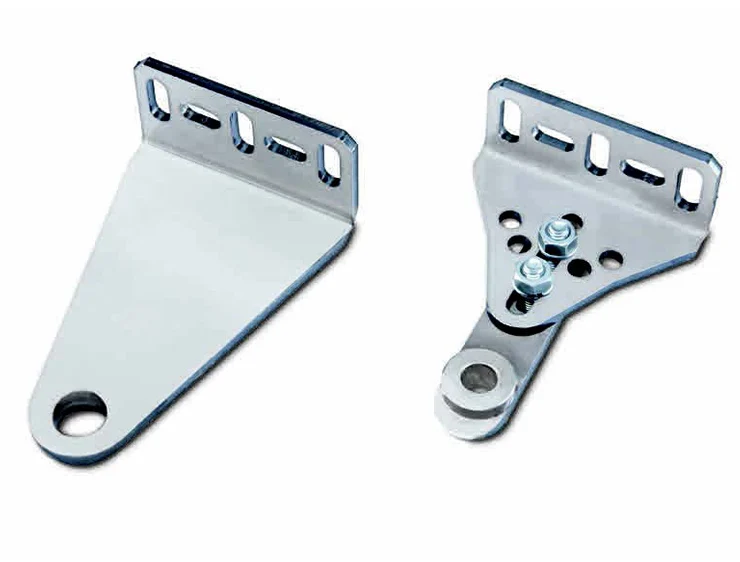

Adjustable fixing clips
Fixing clips can be adjusted to multiple positions without welding, allowing the automation system to easily adapt to different installation types.
Technical Infos
Product infos S418
Technical Description
| Model | Item code |
| S418 24V | 104301 |
- Power supply voltage 220-240V ~ 50/60 Hz
- Electric motor With brushes 24V DC
- Max power 35W
- Max leaf opening angle 110°
- Use frequency Continuous use
- Max leaf width 2.3 – 2.7 m (with electric lock)
