Swing Gate Automation
24V & 230V Electromechanical Operator
| MAX SINGLE LEAF WIDTH | 2.5 – 4 m (with electric lock) |
| USE FREQUENCY | Continuous use (24V) / S3 – 30% (230V) |
Focus on 415 Swing Gate Operator
Maximum Adaptability
The FAAC 415 operates quietly and delivers smooth movement. With the optional slowdown function, gate motion becomes even more fluid, helping to preserve the mechanical structure.
No matter which electronic control panel is used, the system supports a wide range of functions such as automatic re-closing and pedestrian opening.

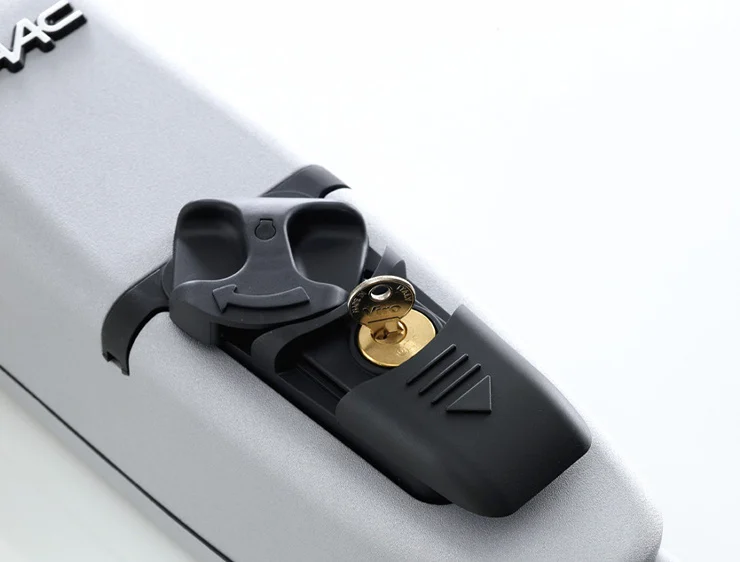

User-friendly Key Release
In the event of a power failure, a key-operated release allows for manual gate opening.
Technical Infos
Product infos 415
Technical Description
| Model | Item code |
| 415 24V | 1044151 |
| 415 L 24V | 1044171 |
| 415 230V | 104415 |
| 415 L 230V | 104417 |
- Power supply voltage 220-240V~ 50/60 Hz
- Electric motor With brushes 24V DC (24V version) Asynchronous single-phase (230V version)
- Max power 70W (24V version) 300 W (230V version)
- Max leaf opening angle 110°
- Use frequency Continuous use (24V version) S3 – 30% (230V version)
- Max leaf width 2.5 – 4 m (with electric lock)
Download
