Automatic Barriers
24V Automatic Hybrid Barrier
| Max traction/thrust force | 2 – 8 m |
| Opening Time | 1.5 – 6 s |
| Use Frequency | Continous Use |
Focus on B680H Automatic Barrier

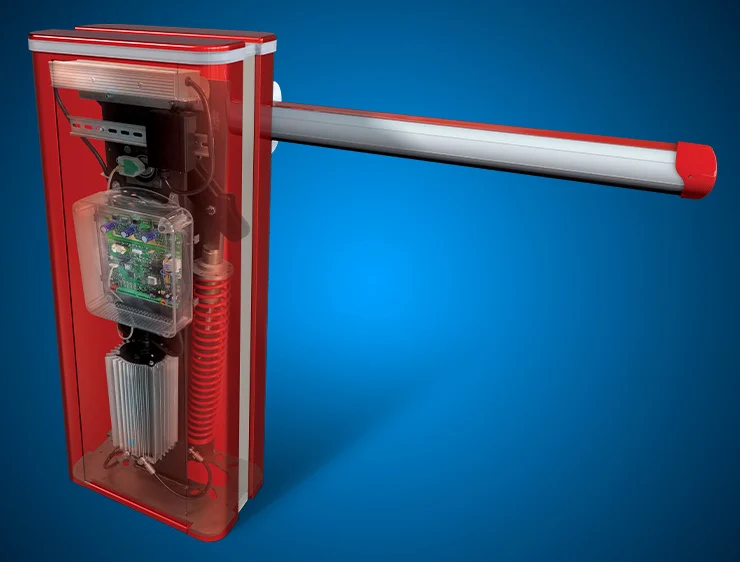

Hybrid heart
The hydraulic pump with brushless motor permits the movement of long or short beams at high speed and continuous cycle (100% duty cycle).

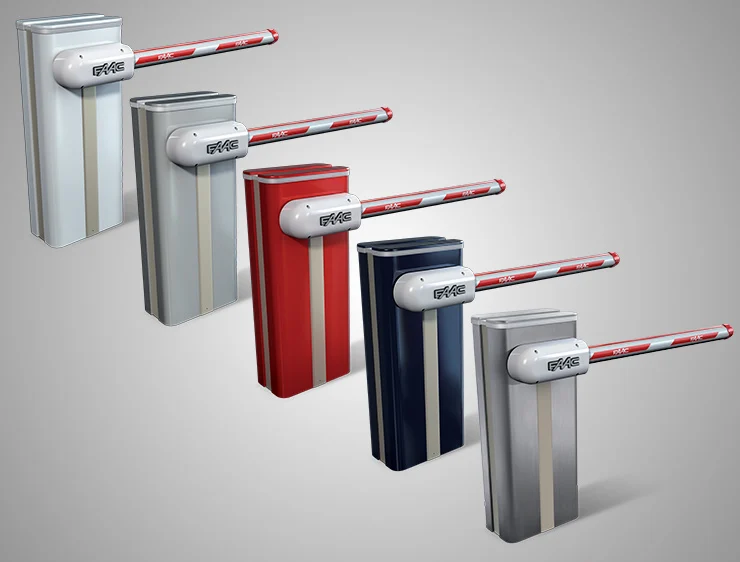

Different needs, different colors
Customize the FAAC B680H barrier with the color that best suits your needs and installation environment.
The removable cover is available in four elegant RAL shades (Flame Red, Steel Blue, Pure White, Aluminum Grey) or in a stainless steel version.
Technical Infos
Product infos B680H
Technical Description
| Model | Item code |
| B680H | 104680 |
- Power supply voltage Switching: 100 ÷ 240V~ 50/60 Hz
- Electric motor Brushless 36V DC
- Max power 240 W
- Max beam length 2 ÷ 8 m
- Opening time 1.5 s (90° – 2m) – 6 s (90° – 8m)
- Use frequency Continuous use
Download
