AUTOMATIC BARRIERS
24V Electromechanical Operators with Belt or Chain Drive
| Max beam length | 6 m |
| Opening time | <2 s (80° with 3 m beam) |
| Use Frequency | Continuous use |

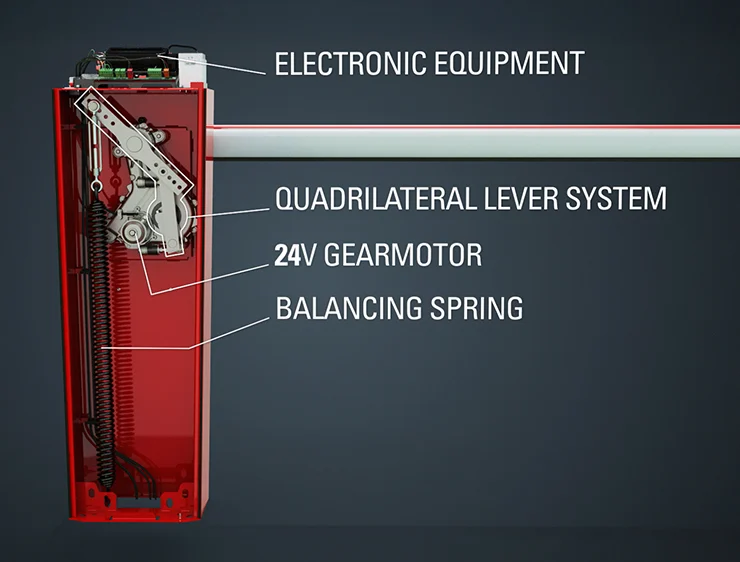

Focus on B614 Automatic Barrier
Complete range of accessories
Numerous accessories are available in order to personalise the product: beam lights and traffic light kit, hedge kit, joint kit, end foot and beam support fork.
Greater visibility, greater safety

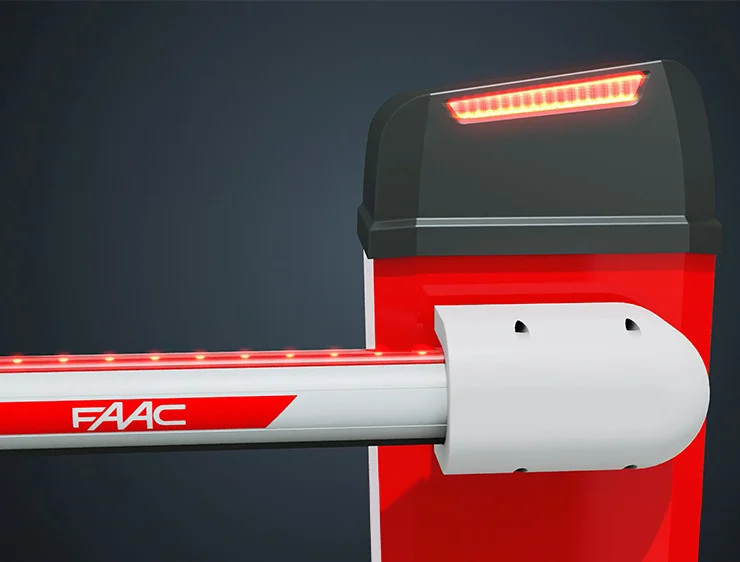

Optional high-visibility integrated flashing traffic light, to ensure complete traffic control. The operation of its high-efficiency red and green LEDs can be programmed via the board.
Optional reflective stickers and LED lighting along the entire length of the beam (rounded or rectangular) make it easy to see even in conditions of poor visibility.
Technical Infos
Product infos B614
Technical Description
| Model | Item code |
| B614 Red RAL 3020 | 104614 |
| B614 Grey RAL 9006 | 1046143 |
- Power supply voltage 220-240V ~ 50/60 Hz
- Electric motor With brushes 24V DC
- Max power 165 W
- Max beam length 6 m
- Opening time < 2 s (80°- with 3 m beam)
- Use frequency Continuous use
Download
