Swing Gate Automation
Underground Electromechanical Operator 24V and 230V
| Max Leaf Weight | 500 kg |
| Max single leaf width | 2 – 3.5 m (with electric lock) |
| Use frequency | Continuous use (770N 24V) – S3 30% (770N 230V) |
Invisible Design. Proven FAAC Performance.
Focus on 770N Swing Gate Operator
Underground Operator
The FAAC 770N is installed completely below ground, allowing the automatic swing gate opener to remain hidden while preserving the original appearance of the gate.

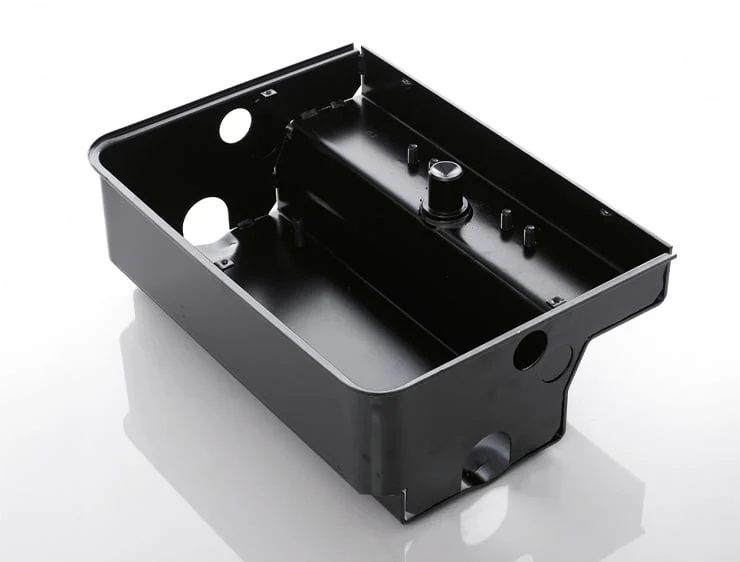

Designed for both new builds and retrofit projects, the system can be installed in two stages by fitting the foundation boxes first and adding the swing gate motor later when automation is required.
Optimal Safety
The FAAC 770N combines self-locking technology with intelligent electronic safety features to deliver secure and dependable operation every day.

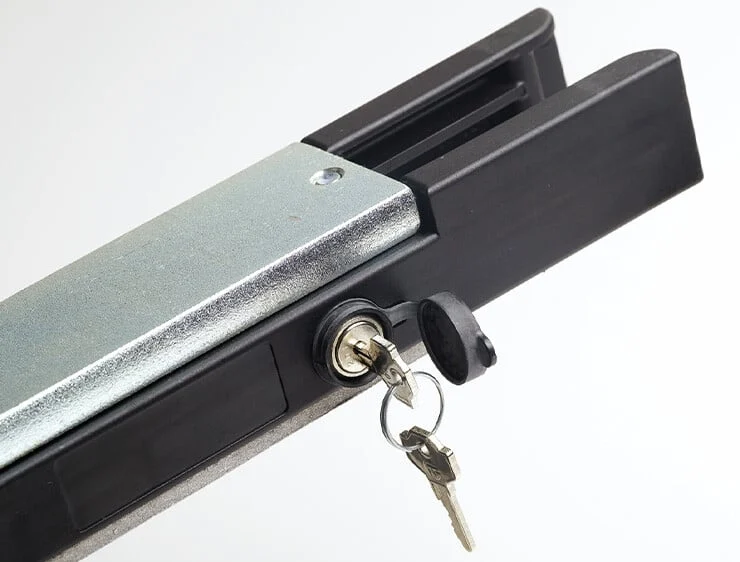

The electronic torque limiter helps protect against crushing hazards in accordance with European safety standards, while the patented key-operated manual release allows the electric swing gate opener to be safely disengaged during a power outage.
Technical Infos
Product infos 770N
Technical Description
| Model | Item code |
| 770N 24V | 10675301 |
| 770N 230V | 10675201 |
- Power supply voltage 220-240V~ 50/60 Hz
- Electric motor With brushes 24V DC (770N 24V) – Asynchronous single phase (770N 230V)
- Max power 70 W (770N 24V) – 380 W (770N 230V)
- Max leaf weight 500 Kg
- Max leaf width 2 m (3.5 m with electric lock)
- Use frequency Continuous use(770N 24V) – S3 30% (770N 230V)
