Swing Gate Automation
230V Hydraulic operator
| MAX SINGLE LEAF WIDTH | 1.8 – 3 m (with electric lock) |
| USE FREQUENCY | 55 CYCLES/HOUR |

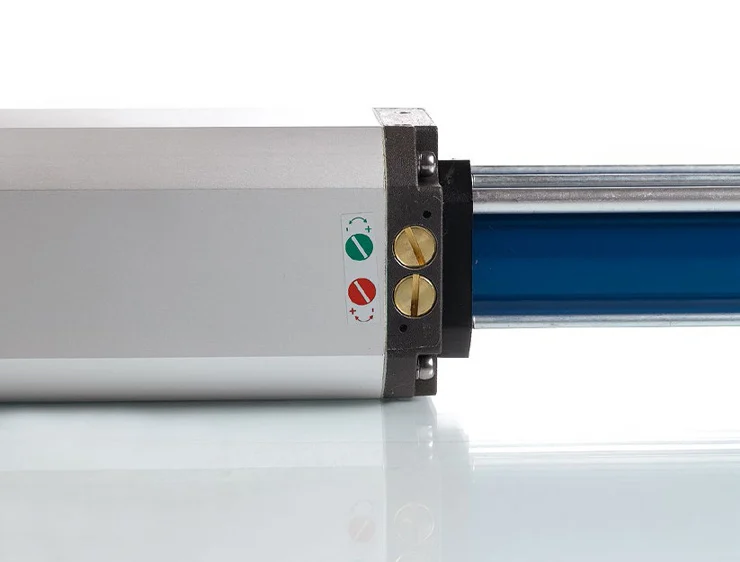

Focus on 402 Swing Gate Operator

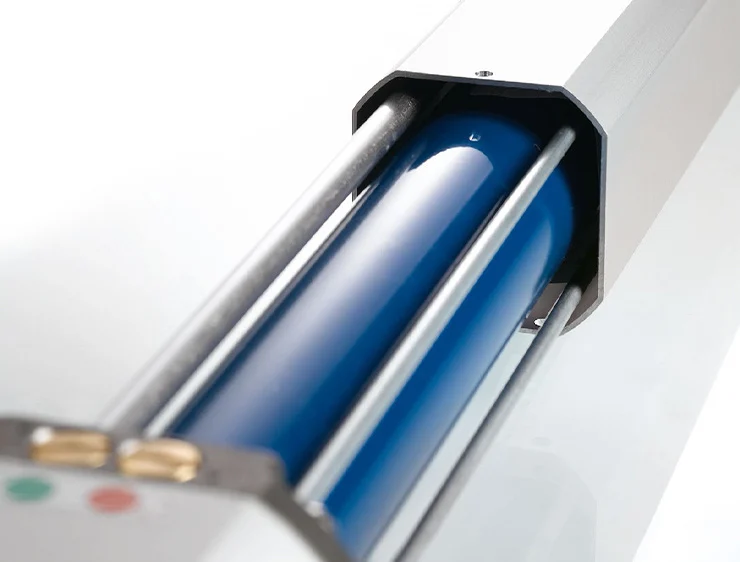

Hydraulic Technology
Typically used for intensive applications, hydraulic technology is known for its outstanding reliability and exceptional durability, thanks to the constant lubrication of all internal components.
It also ensures smooth and quiet movement, guaranteed under any weather condition and in extreme temperatures from –20°C to +55°C. Maintenance is kept to a minimum, with low energy consumption.
Self-locking or Reversible
Closure locking can be ensured directly by the motor using hydraulic technology on the 402 CBC version (max. leaf 1.80 m), or with an electric lock on the 402 SB version (max. leaf 2.20 m) and the 402 SBS version (max. leaf 3.00 m).
Technical Infos
Product infos 402
Technical Description
| Model | Item code |
| 402 CBC | 104468 |
| 402 SBS | 104474 |
- Power supply voltage 220-240V~ 50/60 Hz
- Electric motor Asynchronous single phase
- Max power 220 W
- Max leaf opening angle 110°
- Use frequency 55 cycles/hour
- Max leaf width 1.8 m | 3 m with electric lock
