Swing Gate Automation
230V Hydraulic operator
| MAX SINGLE LEAF WIDTH | 2.2 – 7 m (with electric lock) |
| USE FREQUENCY | 50-70 CYCLES/HOUR |

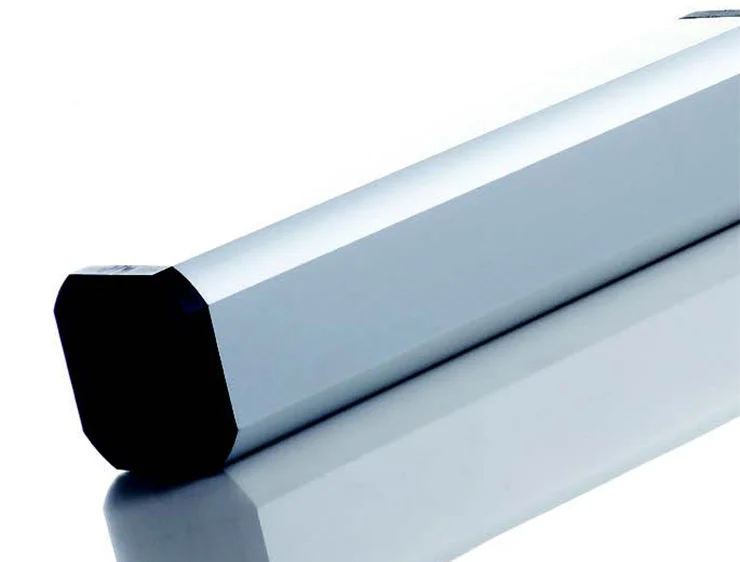

Focus on 400 Swing Gate Operator
Hydraulic Technology
Hydraulic technology is known for its exceptional reliability and durability, as all components benefit from constant lubrication and cooling.
The use of oil ensures smooth and ultra-quiet operation in all weather conditions and within a temperature range of –20°C to +55°C, with low maintenance requirements and reduced energy consumption.
Multiple versions to meet every need
FAAC 400 is available in six different versions, designed to suit a wide range of applications depending on the required speed and power.
In addition to the CBC version (locking in closing), CBAC (locking in both opening and closing), SB (non-locking) and SBS (non-locking, slow speed), the FAAC 400 also comes in special “long” versions — CBAC L and SBS L — developed specifically for large-sized pillars.
Technical Infos
Product infos 400
Technical Description
| Model | Item code |
| 400 CBC | 104205 |
| 400 SB | 104206 |
| 400 SBS | 104203 |
| 400 CBAC | 104201 |
| 400 CBAC L | 104202 |
| 400 SBS L | 104220 |
- Power supply voltage 220-240V~ 50/60 Hz
- Electric motor Asynchronous single-phase
- Max power 220 W
- Max leaf opening angle 125°
- Use frequency 50-70 cycles/hour
- Max leaf width 2.2 m | 7 m with electric lock
Download
