Electromechanical operator with articulated arm

The actuator features the innovative E034 electronic board, which can be programmed locally via display and button or via Simply Connect. It ensures simple yet versatile installation, offering two programming levels to best meet installation requirements and comply with regulatory standards.
It is compatible with the optional XLC module, which reduces standby power consumption to 0.5W (2W with Simply Connect). It also supports alternative energy sources such as solar panels, while saving money and respecting the environment.
Refurbished aesthetics characterised by essential, timeless lines.

MAX SINGLE LEAF WIDTH	0.5 – 2.5 m (with electric lock)
USE FREQUENCY	Continous use

Technical Description

Download

Focus on 392 C swing gate operator

Flexible installation smooth performance

The articulated arm easily adapts to challenging layouts, effortlessly overcoming obstacles like large pillars. In addition, the high-quality electromechanical motor ensures consistent, silent operation.

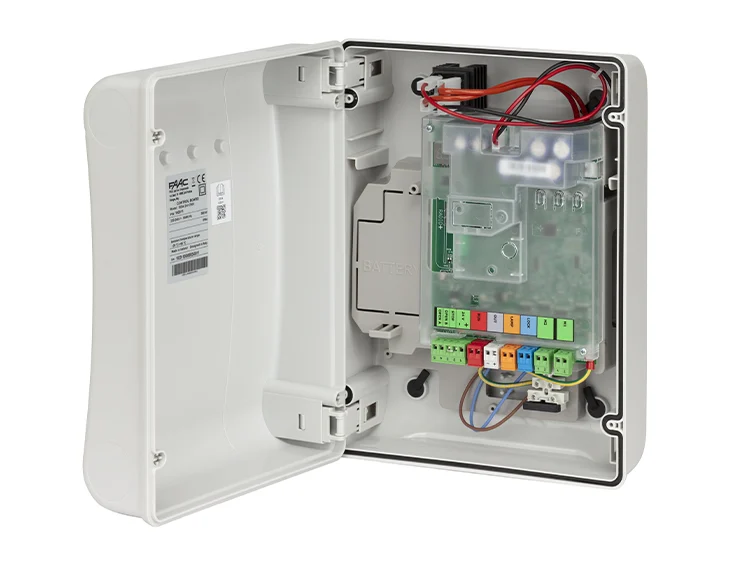

New E034 electronic control board

The E034 electronic control board is integrated onboard the 392 C actuator, offering efficiency and flexibility right from the start. With easy programming options, you can configure it locally via display and button or remotely through Simply Connect.

Technical Infos

Product infos 392 C

Technical Description

Power supply voltage 220 – 240 V AC @50/60 Hz
Electric motor With brushes 24 V DC
Max torque 300 N/m
Max angular speed 8,5°/s
Max leaf opening angle 120°
Max leaf width 2.5 m with electrick lock
Use frequency Continuous use
Protection class IP44
Operating ambient temperature -20° C ÷ + 65° C
Dimensions (LxDxH) 183 x 256 x 304 mm

Model	Item code
392 C	104583
392	104584

Download

Catalogue
Manuals

Other Files:
