230V Electromechanical Operator with Articulated Arm

The FAAC 390 is a premium 230V electromechanical swing gate operator designed specifically for installations where large pillars or limited mounting space make traditional operators less suitable.

Featuring a robust articulated arm, this automatic swing gate opener delivers smooth, dependable performance while maintaining safe and quiet operation.

Its non-reversing design keeps gates securely closed without the need for an electric lock on gates up to 1.8 metres, while the integrated manual release provides convenient access during power outages. Built with the quality and reliability expected from FAAC, the 390 is a durable swing gate motor engineered for New Zealand conditions.

Non reversing operator, does not require electric lock up to 1,8 m
Suitable for large pillars installations, thanks to the articulated arm
Manual release device which can be activated from inside or outside the property.

MAX SINGLE LEAF WIDTH	1.8 – 3 m (with electric lock)
USE FREQUENCY

Technical Description

Download

Designed for Challenging Gate Installations

The FAAC 390 has been developed for gates where installation flexibility is essential. Its articulated arm design makes this swing gate operator an ideal solution for entrances with large pillars or wide hinge offsets, allowing smooth and reliable gate movement where linear operators may not be suitable.

The non-reversing system secures gates without requiring an electric lock for gate leaves up to 1.8 metres, while the robust 230V motor delivers quiet, dependable operation day after day. Combined with an integrated manual release and FAAC’s proven engineering, this electric swing gate opener provides the perfect balance of performance, safety, and durability for residential and light commercial installations.

Key features include:

Premium 230V electromechanical swing gate operator
Articulated arm ideal for gates with large pillars
Non-reversing design removes the need for an electric lock up to 1.8m
Smooth, quiet operation for everyday reliability
Anti-shear articulated arm for improved user safety
Secure manual release operated with a dedicated key
Optional external release for properties with a single entrance
Easy installation and low maintenance
Trusted FAAC quality built for New Zealand conditions

Contact Us

FAAC_390_Attuatore_Cancelli_Battente_Focus1

Focus on 390 Swing Gate Operator

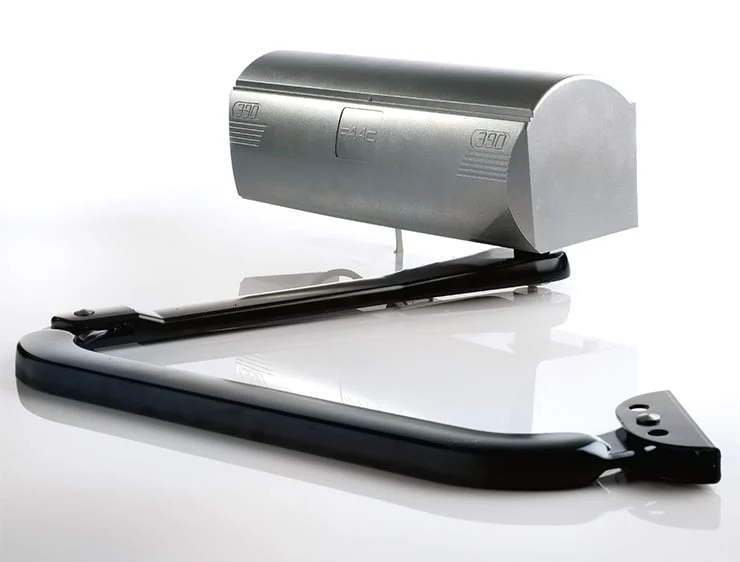

Safe articulated arm

The articulated arm of the FAAC 390 has been carefully engineered with safety in mind. Its anti-shear design helps minimise the risk of finger trapping when the gate is fully open or closed, allowing the automatic swing gate opener to operate smoothly while providing added protection for everyday users.

FAAC_390_Attuatore_Cancelli_Battente_Focus2

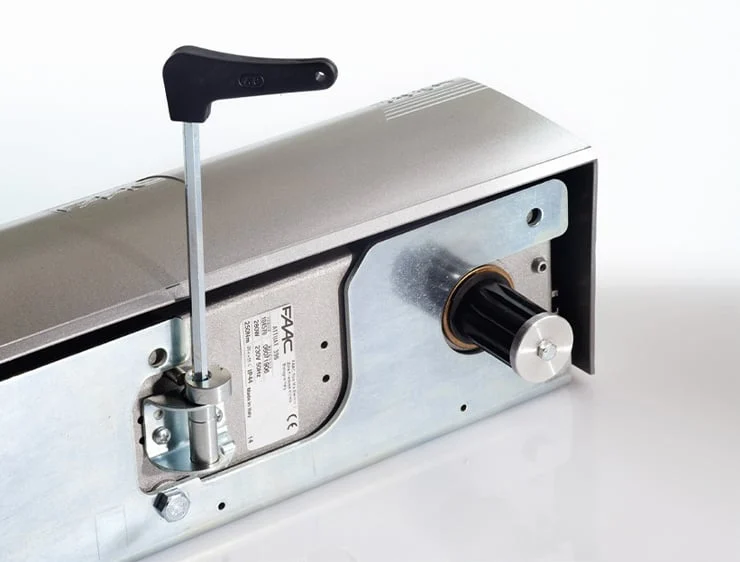

Release System

In the event of a power outage, the FAAC 390 can be manually released using the dedicated key fitted to the swing gate motor, allowing the gate to be opened with ease. Where the gate is the property’s only point of entry, an optional external release system can also be installed, ensuring convenient access without compromising security.

Technical Infos

Product infos 415

Technical Description

Model	Item code
390 230V	104570

Power supply voltage 220-240V~ 50/60 Hz
Electric motor Asynchronous single phase
Max power 280 W
Max leaf opening angle 120°
Use frequency S3 – 30%
Max leaf width 1.8 m (3 m with electric lock)

Download

Catalogue
Manuals

Other Files:
