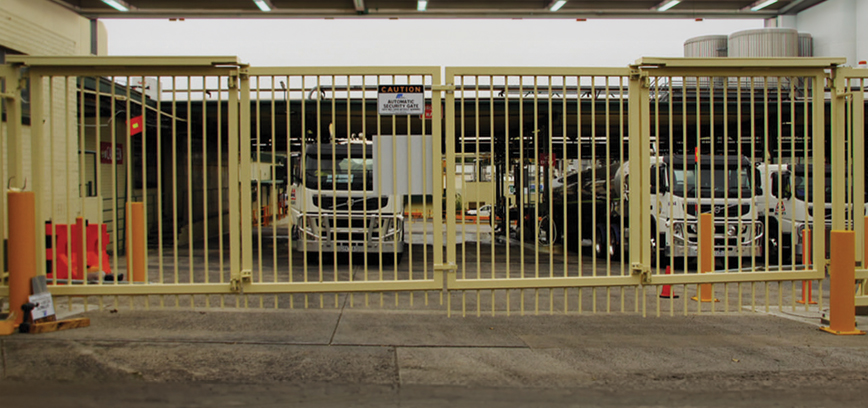

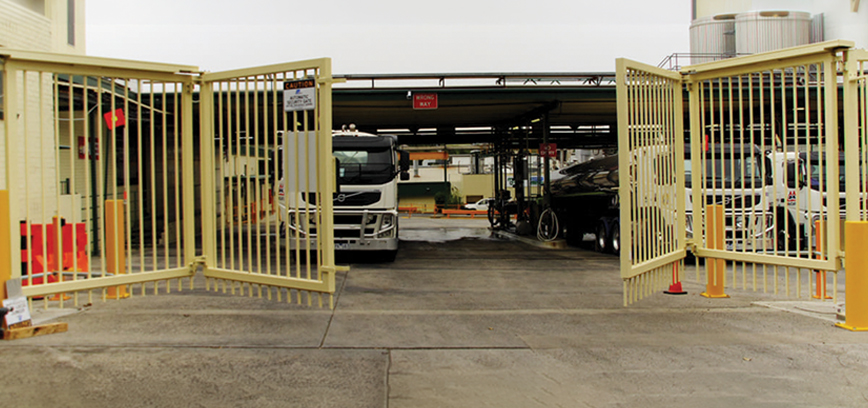

Bi-Fold Swing Gate

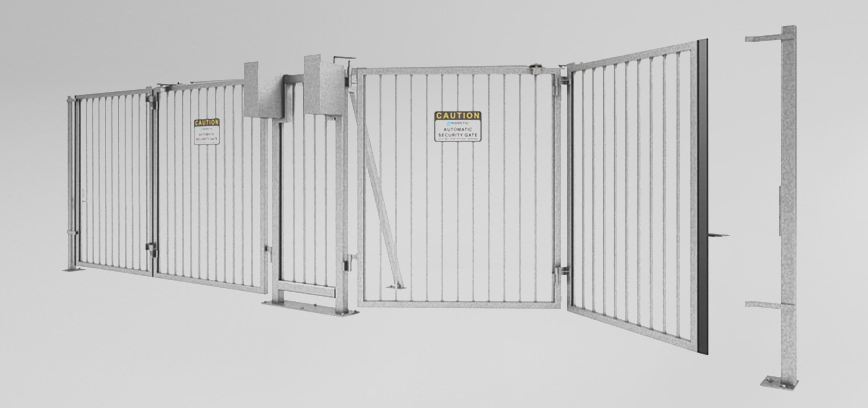

The MSGB Bi-Fold Swing Gate is designed for high end commercial and industrial applications particularly where opening space is limited. It provides maximum control of vehicular passage at security access points and can be customised to suit specific application site requirements. The MSGB Gate operates significantly faster than a conventional swing gate. The design allows a single leaf span of up to 4 metres. It is constructed from fully welded Australian made RHS steel in the gate frame and support posts, with 25 x 25 mm RHS uprights. All fabricated steel is hot dipped galvanized for total protection and maximum life span. Power coating is optional from a wide selection of powder coating colours.

The standard MSG speed drive system incorporates a 3 phase drive motor with PLC (optional) and invertor controller. As standard, the IGD systems are controlled by a PCB1 controller and speed invertor.

Standard safety devices include PE beams, light curtains, inductive loop detectors and signage for use on automatic gate systems. Optional are flashing lights and audible alarms.
