Swing Gate Automation

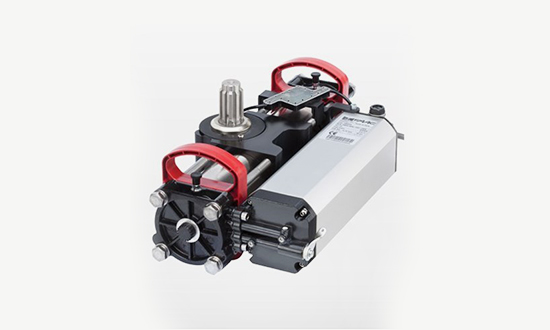

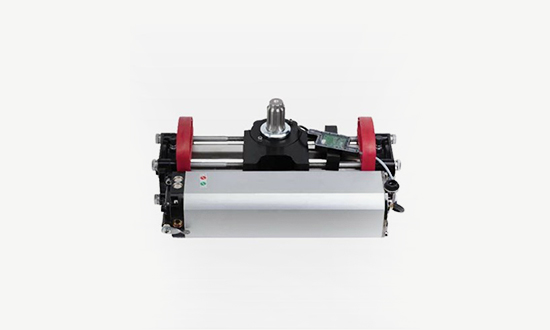

Underground Swing Gate Operator
Gallery
Technical Infos
Product Information
Technical Description
| Duty | Residential & light commercial |
| Max Leaf Length | 4m |
| Max Leaf Weight | 800kg |
| Voltage | 230V |
| Application | Residential & light commercial |
| Anti-Crush Features | Force limited by bypass valves Absolute encoder optional on 230V system |
| Locking | Self locking up to 2m |
| Special Features | 100deg and 180deg versions All operators have built-in stops |
Variants
| Model Variant | Part Number | Application | Operator Type | Max Cycles Per Hour | Power Supply | Leaf Length (Minimum – Maximum) | Gate Obstacle Detection |
|---|---|---|---|---|---|---|---|
| S800 ENC CBAC 100 DEGREES 230V | 108800 |
Light commercial Residential |
Hydraulic | 45 | 230V | 0.70 – 2.00 | Encoder option |
| S800 ENC CBAC 180 DEGREES 230V | 108801 |
Light commercial Residential |
Hydraulic | 45 | 230V | 0.70 – 2.00 | Encoder option |
| S800 ENC SBW 100 DEGREES 230V | 108802 |
Light commercial Residential |
Hydraulic | 45 | 230V | 0.70 – 4.00 | Encoder option |
| S800 ENC SBW 180 DEGREES 230V | 108803 |
Light commercial Residential |
Hydraulic | 45 | 230V | 0.70 – 4.00 | Encoder option |
| S800 CBAC 100 DEGREES 230V | 1088002 |
Light commercial Residential |
Hydraulic | 45 | 230V | 0.70 – 2.00 | Encoder option |
| S800 CBAC 180 DEGREES 230V | 1088012 |
Light commercial Residential |
Hydraulic | 45 | 230V | 0.70 – 2.00 | Encoder option |
| S800 SBW 100 DEGREES 230V | 1088022 |
Light commercial Residential |
Hydraulic | 45 | 230V | 0.70 – 4.00 | Encoder option |
| S800 SBW 180 DEGREES 230V | 1088032 |
Light commercial Residential |
Hydraulic | 45 | 230V | 0.70 – 4.00 | Encoder option |
