Swing Gate Automation

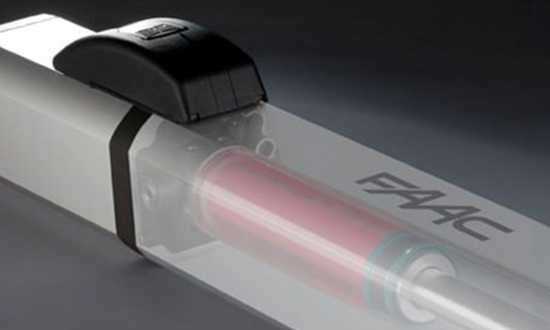

Swing Gate Operator
Gallery
Technical Infos
Product Information
Technical Description
| Duty | Residential |
| Max Leaf Length | 2m to 3m per leaf depending on model |
| Anti-Crush Features | Force controlled electronically from control board and absolute encoder as standard. |
| Hydraulic Locking | Available on some models |

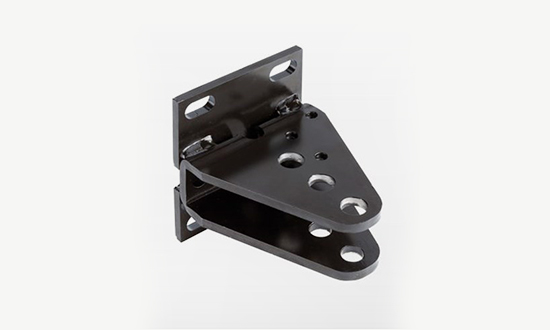

| Special Features | Multi position rear bracket for simple installation Non-locking tri-valve version for easier manual leaf movement Built-in stops Adjustable gate speed (via control board) |
Variants
| Model Variant | Part Number | Application | Operator Type | Max Cycles Per Hour | Power Supply | Leaf Length (Minimum – Maximum) | Gate Obstacle Detection |
|---|---|---|---|---|---|---|---|
| S450H CBAC | 104100 |
Light commercial Residential |
Hydraulic | Continuous | 24V | 1.10 – 2.00 | Encoder |
| S450H SB | 104101 |
Light commercial Residential |
Hydraulic | Continuous | 24V | 1.10 – 3.00 | Encoder |
