• Automatic Swing Doors

Hermetically sealed for hospitals and sterile environments

  • These automatic/manual/semi-automatic single/double leaf swing doors are ideal for bacterial contamination controlled environments.
  • They can be easily installed on prefabricated systems and on any other type of wall. Standard, airtight or hermetically sealed versions are available.
  • These swing doors can be operated either manually or automatically – using electromechanical components with control, regulation and monitoring systems suitable for the application requirements.
Max Leaf Weight From 286 to 367 Kg
Leaf Length From 700 to 1400 mm
Technical Description
Download

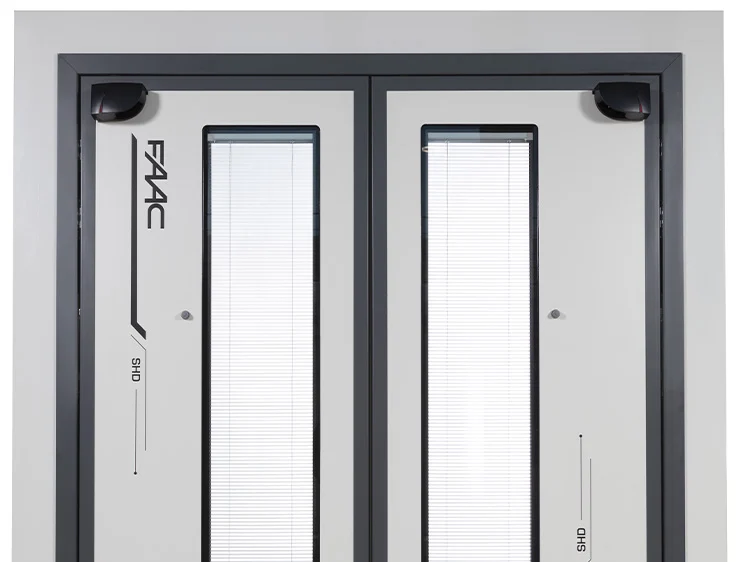

Focus on Swing Hermetic Entrance

Door Frame

The door frame, which is adjustable on three sides, consists of two elements, the frame profile and the subframe profile made of extruded aluminium and/or wide rounded shaped stainless steel.

Inside the frame profile there are special grooves designed to house the friction seal that joins it to the subframe profile.

The frame profile has also been designed with a special internal groove used for fastening it. The groove is closed by a joint seal that is flush with the frame profile.

Leaf

The leaf is fitted with shaped extruded aluminium profiles with wide rounded corners. The leaf profiles have been designed to accommodate special locks.

The lower part of the leaf has been specifically designed to hold a draft excluder profile. In the FHE doors, the leaf profiles overlap the panel. In special cases, we can provide panels that are flush with the leaf.

Technical Infos

Product infos Swing Hermetic Entrance

Technical Description
Model Item code
FHE-HSA Airtight automatic swing door 105145
FHE-HSM Airtight manual swing door 105146
FHE-HHA Airtight automatic swing door 105147
FHE-HM Non Airtight manual swing door 105148
FHE-HA Non Airtight automatic swing door 105149

A952 Swing Door Operator

  • Power supply voltage 100-240 V~ – 50/60 Hz
  • Max power 190 W
  • Standby power 7,3 W
  • Use frequency 100%
  • Electric motor Motor powered at 36 V
  • Max accessories load including electrick lock 1,2A – 24V
  • Dimensions (LxDxH) 715x150x74 mm
  • Weight 12 Kg
  • Operation in case of power cut Manual push/pull opening – Spring closing
  • Max leaf opening angle 100° ÷ 125°
  • Opening and closing leaf time 4 – 10 s (adjustable)
  • Pause time 0 – 30 s
  • Night pause time 0 ÷ 90 s
  • Encoder As standard
  • Protection sensor monitoring (EN16005) As standard (may be excluded)
  • Low energy movement (EN16005) As standard (may be excluded)
  • Operating ambient temperature -20°C ÷ +45°C
  • Protection class IP 30
  • Compliance with regulations EN 16005; EN 61000-6-2; EN 61000-6-3; EN 13849-1 Pl. D; EN13849-2; DIN18650-1, DIN18650-2
