Swing Gate Automation
24V Integrated Electromechanical Operator
| MAX LEAF WEIGHT | 250 kg |
| MAX SINGLE LEAF WIDTH | 2 – 2.5 m (with electric lock) |

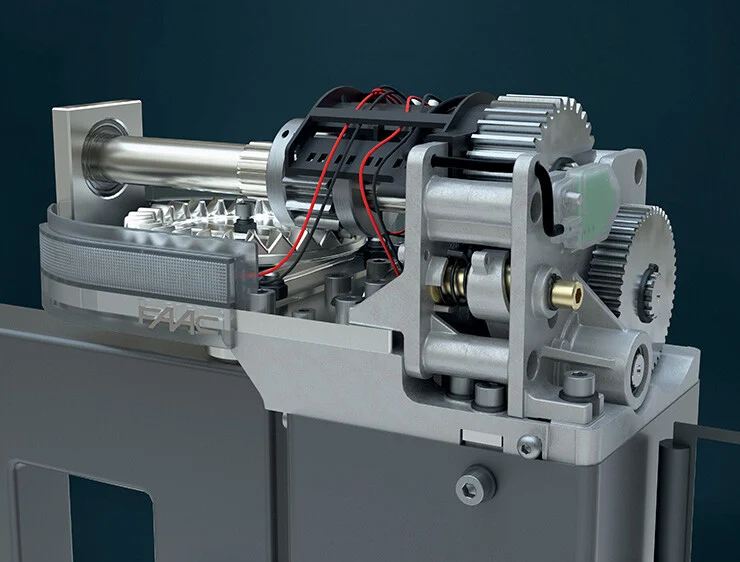

Focus on S2500I swing gate operator
One single model, easy to install
Designed to meet a wide range of application needs, the S2500I can be integrated into metal columns with the following dimensions: 10×10 cm, 12×12 cm, and 15×15 cm.
It can be installed on both newly built and existing gates, and can also be added at a later stage by initially installing only the hinge and cover.
Modern design

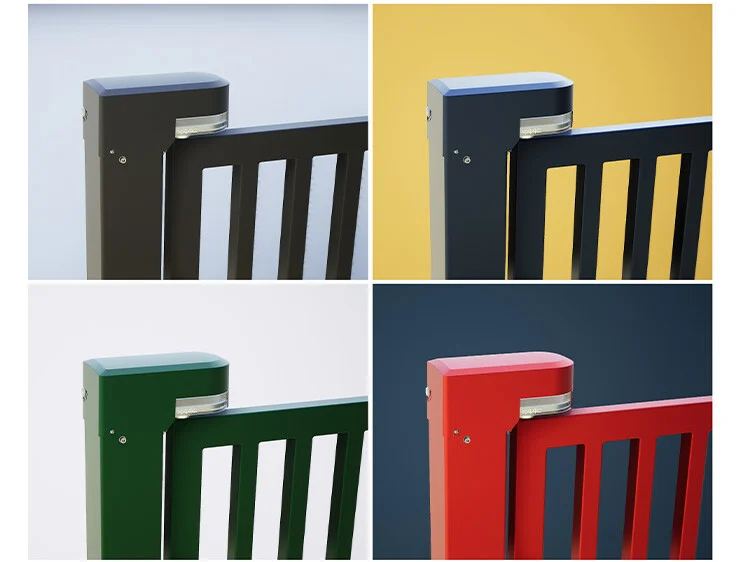

The S2500I blends perfectly into any architectural context. The aluminium cover is available in two versions:
Painted RAL 7021
Neutral, ready to be painted to match the customer’s specific needs
Technical Infos
Product infos S2500I
Technical Description
| Model | Item code |
| S2500I 24V | 104250 |
- Power supply voltage 220-240V ~ 50/60 Hz
- Electric motor With brushes 24V DC
- Max power 40 W
- Max leaf weight 250 kg
- Max leaf width 2 m | 2.5 m with electric lock
- Square section pillar dimensions 100×100, 120×120, 150×150 mm
Download
Accessories and control boards
E124S
Electronic control unit
Cover S2500I RAL Neutral
Cover S2500I RAL 7021
Hinge S2500I
Complements
FDS System
433 and 868 MHz 2- and 4-channel transmitter
Use frequency 433,92 - 868,35 MHz Type of code: FDS technology FDS = FAAC DIGITAL SIGNATURE: Radio protocol based on frequency modulation...
XTO
omniDEC 433 and 868 MHz 2- and 4-channel transmitter
Use frequency 433.92 - 868.35 MHzCoding type: SLH, SLHP, SL, DS Universal compatibilityThe new transmitter supports multiple codes on...
XP 20 D
Adjustable Wall Photocells
XP 20 D System with traditional 24V transmitter and receiver power supply. XP 20B D System with BUS 2easy power supply, just two 24V...
XP 30
Wall Mounted Photocells
Perfectly slim, incredibly powerful. A range of 30 metres, and a depth of 21 millimetres. XP30 photocells are extremely compact. A 55 × 78...
XLED
Flashing Light
Italian design that integrates perfectly with all architecture styles. Equipped with 40 LEDs to ensure visibility, even in the middle of...
XTR B
TAG Reader - Electronic pulse generator
Sheer perfection All the smart features are enclosed into a strong Italian-design case. The XTR B is a high-quality reader. All contained...
XKP
Control keypads - Electronic pulse generator
Small devices, outstanding technology Innovation and design come together in the XKP W 433, XKP W 868 and XKP B control keypads. Up to 255...
Safety Edge Radio System
XT S 868 Transmitter and XR S 868 Receiver
The radio system simplifies the installations creation (including complex ones) with no needs of wire cabling activities between safety...
