• Bollards

High-Security Bollards

Features common to all JS bollards

  • Performance certified according to PAS 68; IWA 14-1 and ASTM F2656 standards.
  • Interchangeable protective sleeve so that the bollard is always just like new.

JS 48 HA – JS 80 HA

  • Maintenance can be carried out without removing the bollard. No lifting equipment required.
  • Able to withstand impact with a truck driven at 50 km/h (JS 48 HA) or 80 km/h (JS 80 HA). P1 penetration rating, still operational after impact.

JS 48 R – JS 80 R

  • Removable cylinder to allow temporary access.

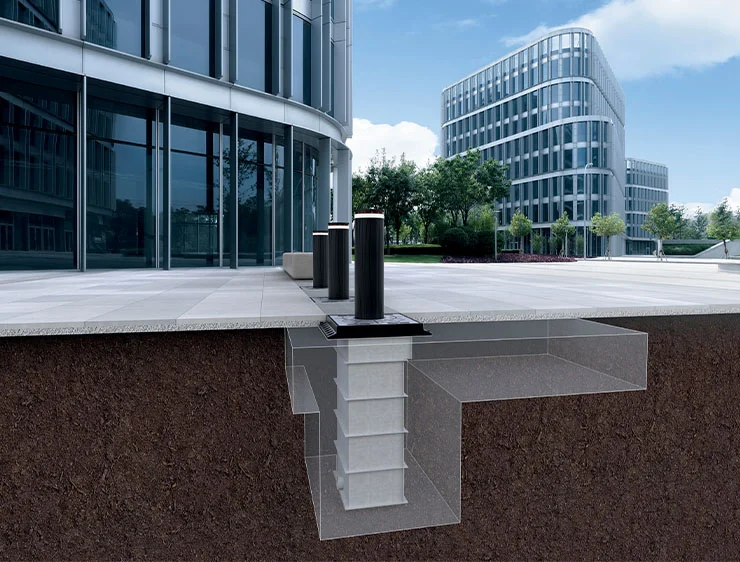

  • “Shallow Mounted” design: minimum hole depth required.
  • Able to withstand impact with a truck driven at 50 km/h (JS 48 R) or 80 km/h (JS 80 R). P1 penetration rating.

JS 80 F

  • “Shallow Mounted” design: minimum hole depth required.
  • Able to withstand impact with a truck driven at 80 km/h. P1 penetration rating.
Type of Operator Hydraulic Automatic (JS 48/80 HA)
Removable (JS 48/80 R)
Fixed (JS 80 F)
Height 1.000 mm
Technical Description
Download

Focus on JS Series Bollards

New range of high security bollards

The FAAC JS-series bollards were conceived with the purpose of maximising safety in all areas that may be threatened by vehicles. JS bollards provide an innovative answer to protecting sensitive buildings, squares, markets, pedestrian areas and places with high traffic.

Non-invasive safety, able not only to protect spaces and people, but also the aesthetics of the surrounding architectural context.

Certified resistance

Crash tests passed perfectly: JS bollards are certified to stop a 7.500 kg truck driven at 50 km/h (JS48) and 80 km/h (JS80), certified operation even after impact.

Safety standards complied with: IWA 14-1, PAS 68, ASTM F2656.

Technical Infos

Product infos JS Series

Technical Description
Model Item code
JS 48 HA 117001
JS 48 HA EFO 117051
JS 48 HA INOX 117201
JS 48 HA EFO INOX 117251
JS 48 R 117111
JS 48 R INOX 117301
JS 80 HA 117501
JS 80 HA EFO 117551
JS 80 HA INOX 117701
JS 80 HA EFO INOX 117751
JS 80 R 117601
JS 80 R INOX 117801
JS 80 F 117651
JS 80 F INOX 117851
  • Type of operator Hydraulic automatic (JS 48/80 HA) – Removable (JS 48/80 R) – Fixed (JS 80 F)
  • Cylinder height from ground 1.000 mm
  • Cylinder diameter 275 mm
  • Release device Yes (JS 48/80 HA)
  • Max power 3.500 W (JS 48/80 HA)
  • Break in resistance 673.000 J (JS 48 HA/R) – 1.852.000 J (JS 80 HA/R/F)
Download

Catalogue
Manuals

Other Files:
