• Garage Door Automation

24V Electromechanical Operators with Belt or Chain Drive

  • Easy and fast installation thanks to the pre assembled rail and rotation coupling.
  • Belt transmission.
  • Limit switch adjusting electronic deceleration and reverse on obstacle detection.
  • D700 HS: Speed up to 12 m/minute. Double compared to traditional automations!
Max traction/thrust force 600 N (D600) – 700 N (D700 HS) – 1.000 N (D1000)
Technical Description
Download

Focus on D600 D700 HS D1000 Garage Door Operators

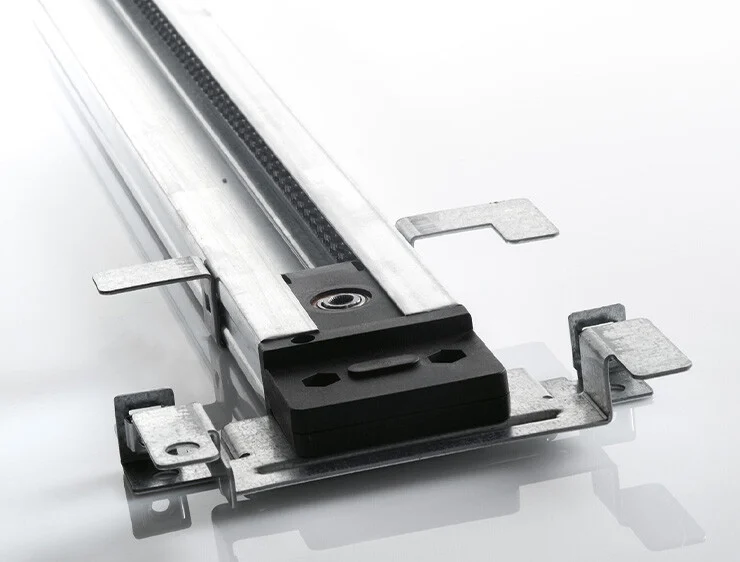

Snap-in and rotation mounting system (FAAC patent)

Final position and slowdown points are stored through a simple initialization process.

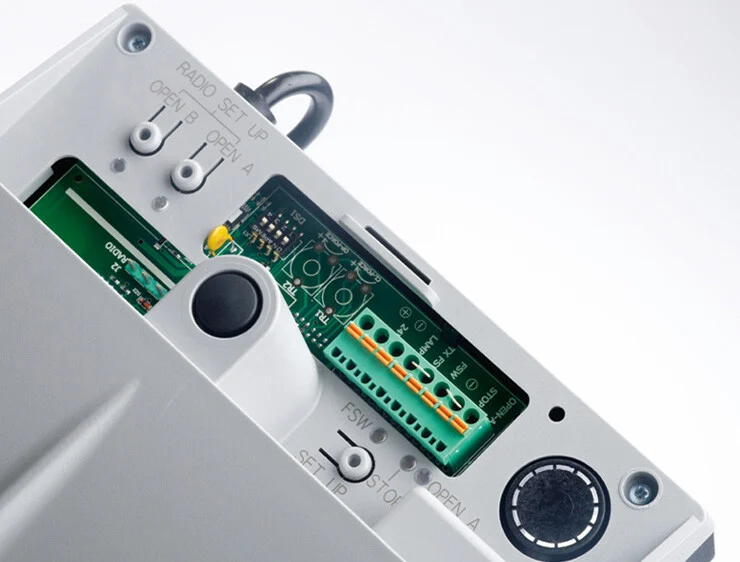

Electronic board

Quick connector: for receiver boards.
Operating logic: automatic/semi-automatic.
Terminal block connections: Open/Stop/Safety/Safety self-test/24V Flashing light.

Technical Infos

Product infos D600 - D700 HS - D1000

Technical Description
Model Item code
D600 Dolphin Kit K868 10566515
D600 Dolphin Kit K433 10566516
D700 HS 110602
D1000 Dolphin kit K868 10566615
D1000 Dolphin kit K433 10566616
  • Power supply voltage 220-240V~ 50/60 Hz
  • Electric motor With brushes 24V DC
  • Max power 220W (D600) – 440W (D700 HS) – 350W (D1000)
  • Max traction/thrust force 600 N (D600) – 700 N (D700 HS) – 1.000 N (D1000)
  • Max carriage speed 6.6 m/min (D600 and D1000) – 12 m/min (D700 HS)
  • Carriage speed at slow-down 1.3 m/min (D600 and D1000) – 2.5 m/min (D700 HS)
