• Automatic Swing Doors

Swing Door Automation

  • The A952 automation, compliant with EN16005, is able to move doors up to a weight of 800 Kg, in continuous use and in absolute silence. It can be installed on escape routes in compliance with EN16005 and is able to meet all the safety requirements of EN13489-1 PLD.
  • Variable ratio rack and pinion to provide constant spring compression (FAAC PATENT).
  • Variable ratio parallel shaft gears for effective and smooth movement (FAAC PATENT).
  • Compact dimensions ideal for fire and smoke vent doors.
  • The housing cover is made of silver anodized aluminum.
Max Leaf Weight Sliding arm 800 Kg – 700 mm | Articulated arm 700 Kg- 750 mm
Leaf Length From 700 to 1600 mm
Technical Description
Download

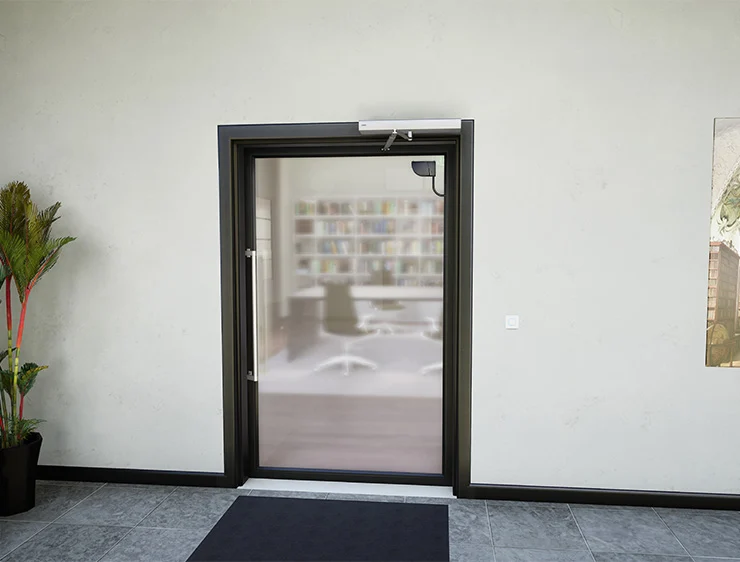

Focus on A952 Swing Door Automation

One single product for every application

Thanks to the special spring system, with push and pull function depending on the type of installation (sliding or articulated arm), the A952 automation is characterized not only by the high level of security it can guarantee but also by its extreme versatility.

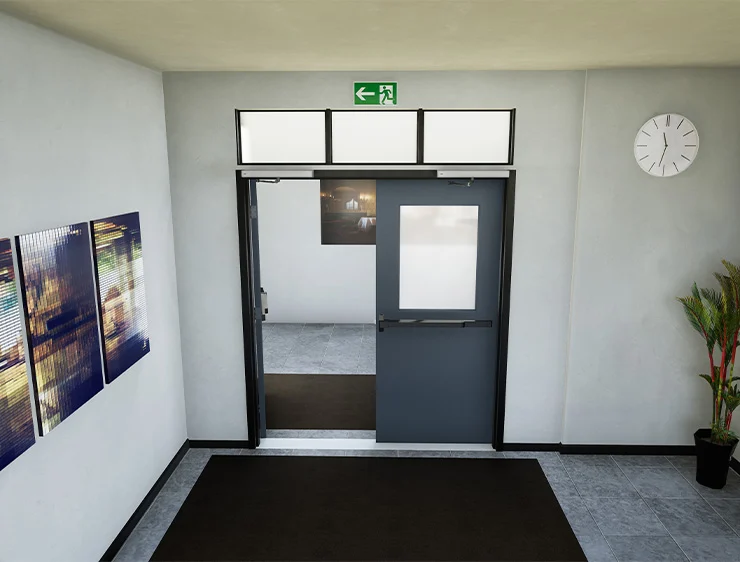

With a single automation, it is indeed possible to ‘transform’ swing doors by choosing from different uses – standard, emergency exit, fire resistance, or smoke evacuation – adaptable to many areas of applications such as education, airports, hospitals, but also hotels, residential and offices.

An automation that stacks up the numbers

• Compact dimensions 73 x 150 x 715 mm
• Spring tested for more than 1.000.000 cycles
• Maximum dimensions of the door leaf: 1600 mm width and 450 kg weight
• Inertia max 130 Kg·m2, both with sliding arm and articulated arm.

Technical Infos

Product infos A952

Technical Description
Model Description Passage opening
 Max leaf weight
with articulated
arm		 Max leaf weight
with sliding arm
 Item code
A952 With electronic control
unit function selector and
anodised aluminium cover		 700 ÷ 1600 mm 700 Kg – 750mm
150 Kg – 1600 mm		 800 Kg – 700mm
150 Kg – 1600 mm		 105952
Arms
 Articulated push arm       390189
Standard sliding block arm       390187
Short sliding block arm       390188
  • Power supply voltage 110-240 V~ – 50/60 Hz
  • Max power 350 W
  • Standby power 5 W
  • Use frequency 100%
  • Electric motor Motor powered at 24V
  • Max accessories load 1A – 24V
  • Electric lock power supply voltage (N.O./N.C.) 24 V / 500 mA max
  • Dimensions (LxDxH) 715x150x74 mm
  • Weight 12 Kg
  • Operation in case of power cut Manual push/pull opening – Spring closing
  • Max leaf opening angle 100° ÷ 125°
  • Opening and closing leaf time 4 – 10 s (adjustable)
  • Partial opening adjustment 10% – 90% of total opening
  • Pause time 0 – 30 s
  • Night pause time 0 ÷ 90 s
  • Encoder As standard
  • Protection sensor monitoring (EN16005) As standard (may be excluded)
  • Low energy movement (EN16005) As standard (may be excluded)
  • Operating ambient temperature -20°C ÷ +55°C
  • Protection class IP 23 (for internal use only)
  • Compliance with regulations EN 16005; EN 61000-6-2; EN 61000-6-3; EN 13849-1 Pl. D; EN13849-2
