• Automatic Swing Doors

Internal Swing Door Automation

  • A951 operator opens and closes the internal door silently and smoothly.
  • The housing cover is in anodized extruded aluminium.
  • Manufactured in compliance with the new European safety standards EN16005; speed and forced are programmed depending on door dimensions.
  • Thanks to the accurate selection of mechanical and electronic components, the A951 automated system can silently drive leaves weighing 100 kg and1100-mm wide on continuous duty ensuring the absolute operating safety at any time.
Max Leaf Weight 100 kg
Leaf Length From 700 to 1600 mm
Technical Description
Download

Focus on A951 Swing Door Automation

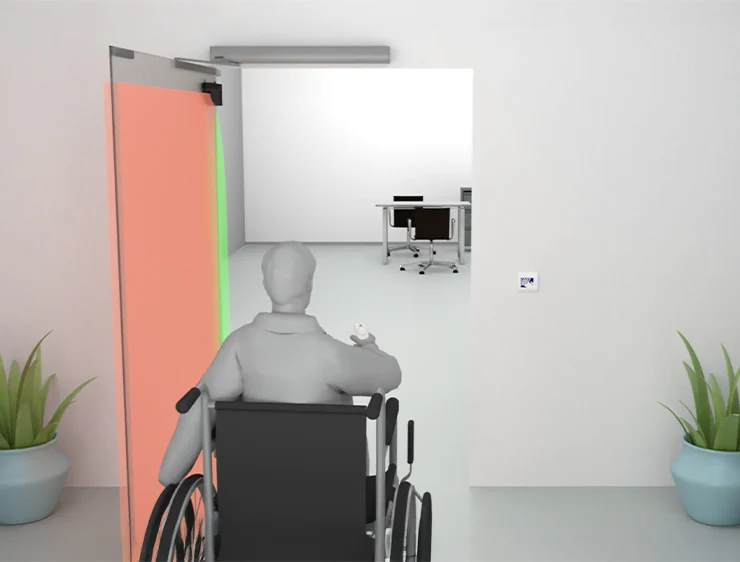

Open and close in absolute comfort

The A951 automated system controls door opening and closing with silent and smooth operation. It allows users to easily open doors via a button, sensor or a remote control. Thanks to the PUSH&GO function, just a touch completely opens the door.

Silent and low-energy consumption

Thanks to the accurate selection of mechanical and electronic components, the A951 automated system can silently drive leaves weighing 100 kg and 1100 mm wide on continuous duty ensuring the absolute operating safety at any time offering significant energy savings both during stand-by and when operating.

Technical Infos

Product infos A951

Technical Description
Model Description Passage opening
 Max leaf weight
with articulated
arm		 Max leaf weight
with sliding arm		 Item code
A951 With electronic control
unit function selector and
anodised aluminium cover		 700 ÷ 1100 mm 100 Kg 100 Kg 105951
Arms
 Sliding arm       390167
Articulated arm       390169
  • Power supply voltage 220-240 V~ – 50/60 Hz
  • Max power 100 W
  • Standby power 5W
  • Use frequency 100%
  • Electric lock power supply voltage 25Nm
  • Electric motor Motor powered at 24V
  • Max accessories load 1A – 24V
  • Electric lock power supply voltage (N.O./N.C.) 24 V / 500 mA max
  • Dimensions (LxDxH) 575x60x70 mm
  • Weight 7 Kg
  • Operation in case of power cut Manual push/pull opening
  • Max leaf opening angle 100° ÷ 125°
  • Opening and closing leaf time 4 – 10 s (adjustable)
  • Partial opening adjustment Standard (adjustable)
  • Pause time 0 – 30 s
  • Night pause time 0 ÷ 90 s
  • Encoder As standard
  • Protection sensor monitoring (EN16005) As standard (may be excluded)
  • Low energy movement (EN16005) As standard (may be excluded)
  • Operating ambient temperature -20°C ÷ +55°C
  • Protection class IP 23 (for internal use only)
  • Compliance with regulations EN16005; EN61000-6-2; EN61000-6-3 ; EN13849
