• Perimeter Protection

Full Height Double Turnstile

  • Space-saving double system for two independent passageways
  • Mechanical, electromechanical or motorized designs available
  • Maximum personal safety in accordance with DIN EN 17352 thanks to the Magnetic Safe Drive Solution MSDS®
  • Numerous options, e.g. expansion for wheelchair access
  • Designed for 10 million passages
Download Data Sheet

Gallery

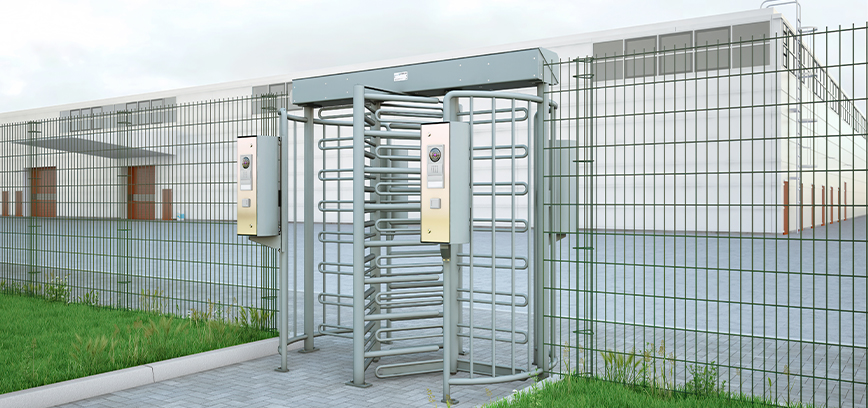

For persons in outdoor areas

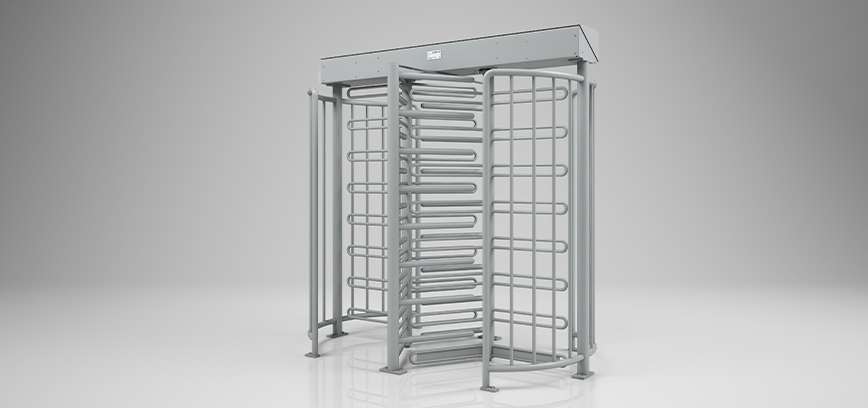

MPT double full height turnstiles are the ideal solution for access control in outdoor areas where two lanes are required within a compact space. With various drive options, MPT turnstiles can be precisely tailored to your application: The electromechanical MPT 352 turnstile is driven gently, evenly, and almost silently by an MHTM™ drive unit – ideal for the representative securing of outdoor and company premises. The MPT 353 features an electromechanical locking unit, and the turning movement is generated by the user – a popular option in amusement parks and stadiums. Both drive versions can be controlled using all common access control systems and operated in both passage directions. The purely mechanical MPT 350 only allows passage in one direction, making it particularly suitable for unattended exits in swimming pools and sports facilities for example. MPT turnstiles can also be individually adapted to your requirements: with different material finishes, locking options, additional components, and swing leaf for bicycles passage, wheelchairs, and material transport.

Two passages in one

MPT double turnstiles are the optimum solution when two separate passages need to be set up in the most limited of spaces.

Uniform system architecture

Magnetic full-height turnstiles use the same drive technology, control units, and power supply as our barriers and pedestrian gates.
This simplifies training and inventory management and significantly speeds up installation and maintenance.

Outstanding safety

The Magnetic Safe Drive Solution MSDS® provides the drive with only the energy required to move the turnstile. The low-energy concept (Performance Level d, Cat. 2) protects users in accordance with the strict requirements of DIN EN 17352.

Innovative drive technology

The MHTM™ drive unit with planetary gearbox ensures smooth, even, and virtually silent operation of the center post. This allows the turnstile to guide visitors safely and comfortably into the perimeter.
